View image ↗The Solar PV Panel Recycling Plant uses physical separation and sorting processes to process waste photovoltaic panels and recover reusable materials for further resource utilization.
01 / INPUT MATERIAL
Raw Materials Structure
Brief Introduction
Single-glass PV modules, also known as single-glass solar panels or glass-backsheet modules, are traditional photovoltaic panels with a front glass and a polymer backsheet. They are the most common conventional PV modules, mainly composed of glass, solar cells, EVA, backsheet, aluminum frame, and junction box.
View image ↗02 / THE EQUIPMENT
Product Introduction

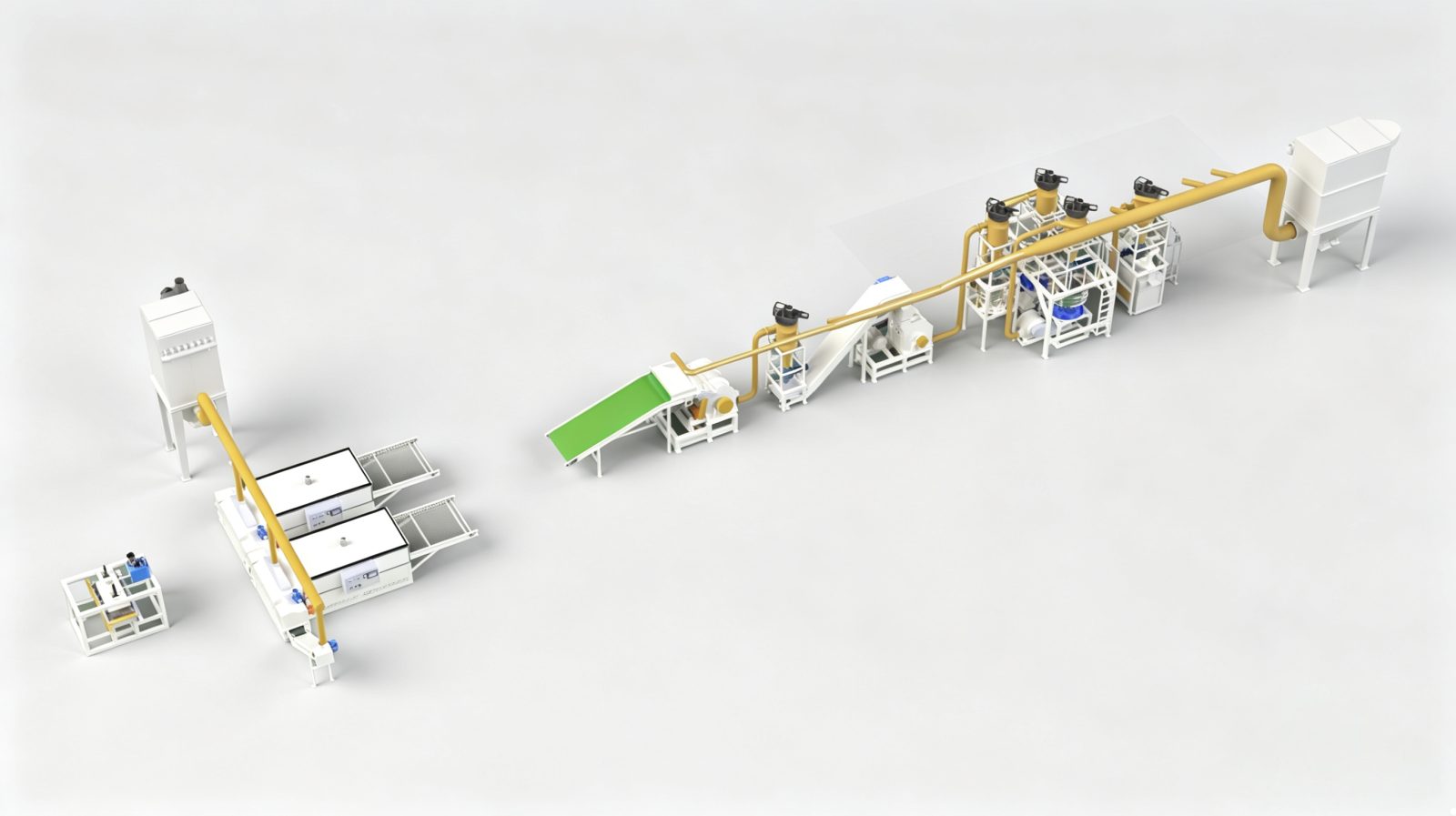

The Single-Glass PV Module Recycling Production Line is a semi-automatic system designed for processing traditional glass-backsheet solar panels. It consists of a frame removal system, glass removal system, crushing system, material sorting system, and dust collection system. The line separates and recovers materials such as glass, aluminum, silicon, copper, plastic, and junction boxes for further recycling and material processing. It can be used for Single-Glass Solar Panel Recycling, Solar PV Panel Recycling, Photovoltaic Module Recycling, and Waste Solar Panel Material Separation.
View image ↗03 / SYSTEM BENEFITS
Product Features

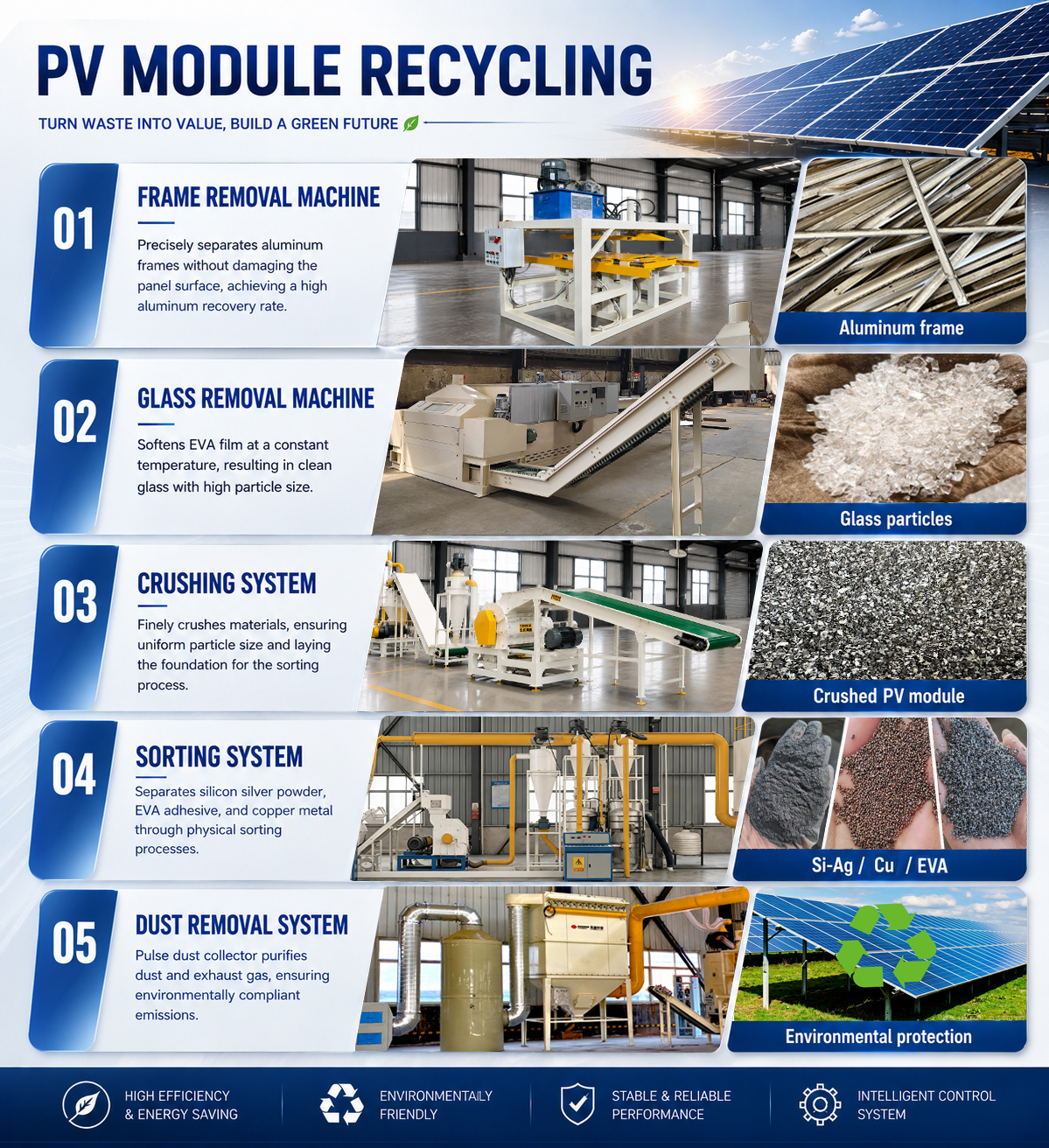

Integrated Recycling Process
The Solar Panel Recycling Line combines frame removal, glass separation, crushing, material sorting, and dust collection in one system, supporting continuous processing of waste photovoltaic panels.
Material Recovery and Separation
The system separates aluminum, glass, silicon, copper, plastics, and junction boxes for subsequent recycling and material processing. It supports Solar Panel Recycling, Solar PV Panel Recycling, and Photovoltaic Module Recycling applications.
Dust Management
The integrated dust collection system manages dust generated during crushing and sorting, supporting cleaner operation during the Solar Panel Recycling Process.
View image ↗04 / FROM PANELS TO MATERIALS
Recycling Workflow
Waste Solar Panel Collection
Waste photovoltaic panels are collected from solar power plants, off-spec panels from solar panel manufacturers, and decommissioned building photovoltaic installations.
Aluminum Frame Removal
The Solar Panel Aluminum Frame Removal Machine separates the aluminum frames from waste solar panels for aluminum recovery.
Glass Removal
The Solar Panel Glass Removal Machine removes the glass layer from solar panels, producing recovered glass particles.
Panel Crushing
After the aluminum frame and glass are removed, the remaining panel layers are processed by a Solar Panel Crushing Machine.
Material Sorting
The crushed materials enter the Solar Panel Material Sorting System, where silver-silicon powder, EVA, and copper are separated for further recycling and processing.
Dust Collection
Each Solar Panel Recycling Production Line is equipped with a dust collection system to manage dust generated during frame removal, glass removal, crushing, and material sorting.
MECHANICAL SEPARATION
Single-glass Solar Panel Recycling
Swipe to explore the complete process →
Single-glass PV Modules
Aluminum Frame Removal
Panel with Glass
Glass Removal
Back Panel
Crushing & Sorting
Aluminum
Junction Box
Junction Box Recycling
Copper
Plastic
Copper
Plastic
Silicon–Silver Powder
Glass05 / RECOVERED RESOURCES
Final Products
After processing through the Solar Panel Recycling System, materials such as aluminum frames, junction boxes, glass, silicon-silver powder, plastics, and copper can be recovered. The separated materials can be directed to different recycling and manufacturing applications, supporting Solar Panel Material Recovery, Solar PV Panel Recycling, Photovoltaic Module Recycling, and the reuse of secondary raw materials.
View image ↗06 / CUSTOMER PROJECTS
Solar PV Panels Recycling Line
Customer Site
Our Solar Panel Recycling Equipment, Photovoltaic Module Recycling Equipment, and other Solid Waste Recycling Solutions have been supplied to customers in Italy, Slovakia, Poland, Austria, Greece, the United States, the United Kingdom, South Korea, Japan, Taiwan, Hong Kong, India, Malaysia, Indonesia, and other markets. Through equipment applications in solar panel recycling, material separation, cable recycling, and electronic waste processing, we have developed project experience across different regional requirements and received positive feedback from customers.
View image ↗07 / GLOBAL REACH
Solar PV Panels Recycling Line
Sales Areas
