SOLAR PV MODULE PRE-TREATMENT

Solar PV Panel Glass Removal Machine

The Solar PV Panel Glass Removal Machine is designed for the glass separation stage of Solar Panel Recycling Lines. After the aluminum frame and J-Box are removed, the machine separates the glass from end-of-life solar PV panels and produces a Cell/EVA sheet for subsequent recycling and material processing. As a type of Solar Panel Glass Separation Machine and PV Module Recycling Equipment, it is suitable for waste solar panel recycling, photovoltaic module dismantling, and material separation applications.

AT A GLANCE

Product Features

Main Applications
Used to remove the glass surface from single-glass solar panels.
Raw Materials
De-framed PV modules and frameless solar panels without junction boxes.
Main Final Products
Separated glass and Cell/EVA layer.
53 kWPower
1000 kg/hStated processing capacity

If you want to start your recycling business, feel free to contact us.

Chat on WhatsApp ↗+86 13253677742

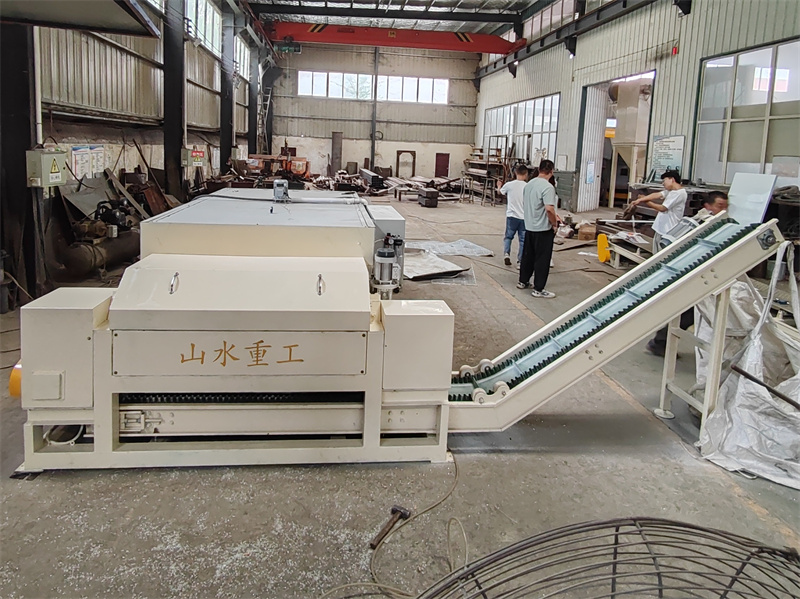

Watch the glass removal machine in operation.

Recycling Solution Details

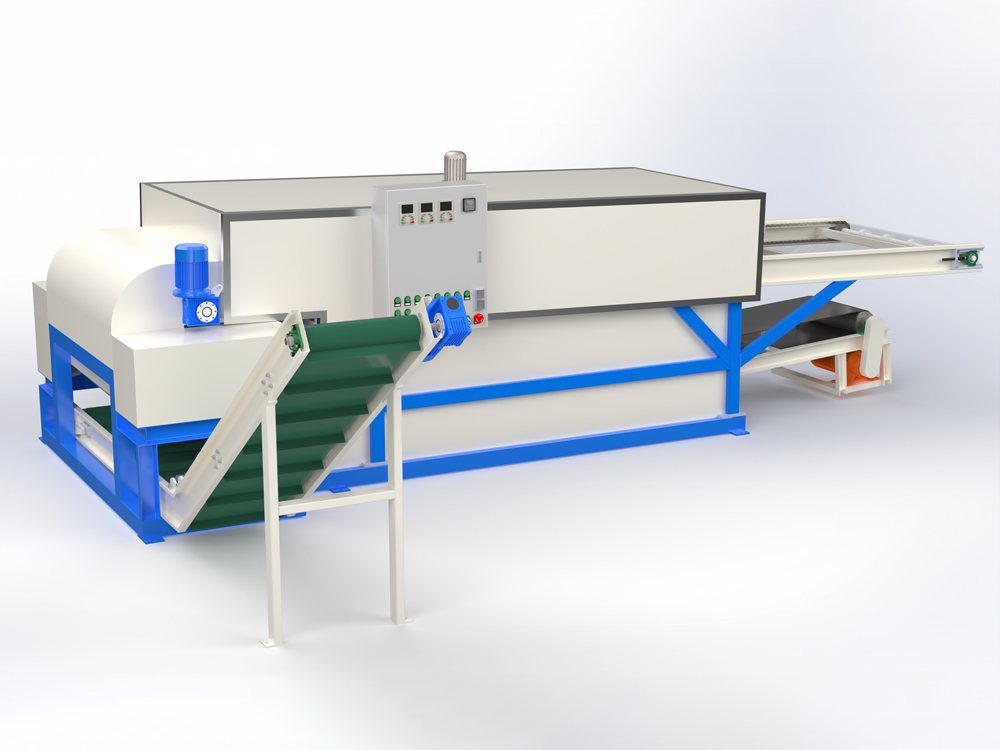

Solar PV Panel Glass Removal MachineView image ↗

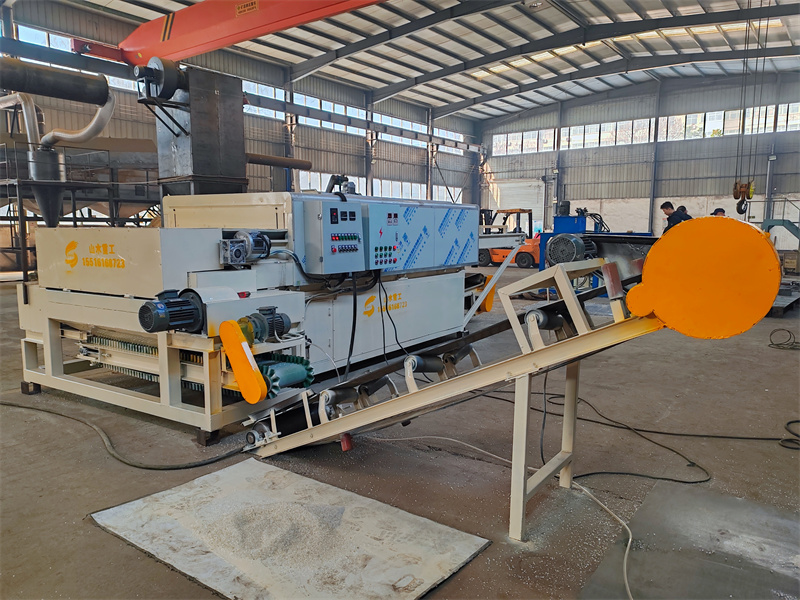

The Solar PV Panel Glass Removal Machine is used to separate glass from waste solar panels and end-of-life PV modules after the aluminum frame and J-Box have been removed. It is suitable for Solar Panel Recycling Lines, PV Module Recycling, and photovoltaic material separation.

01 / EQUIPMENT & PROJECTS

Product Introduction

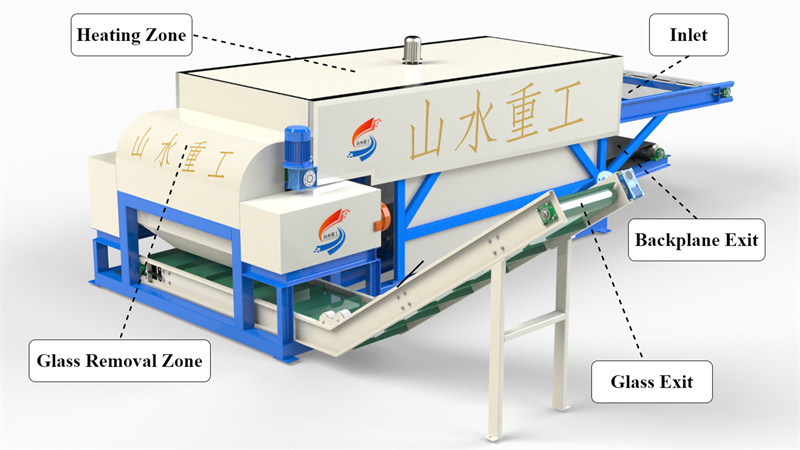

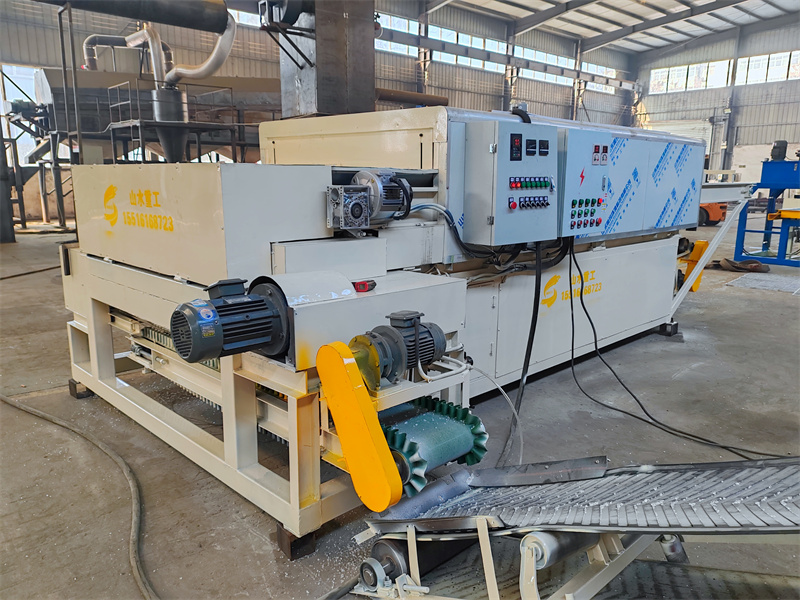

The Solar PV Panel Glass Removal Machine is designed for the glass separation stage of a Solar Panel Recycling Line. It includes a Feeding Inlet, Electrical Box, Glass Outlet, and PV Backplane Outlet. The machine supports the separation of glass and PV backplane materials for further recycling and processing.

01

Feeding Inlet

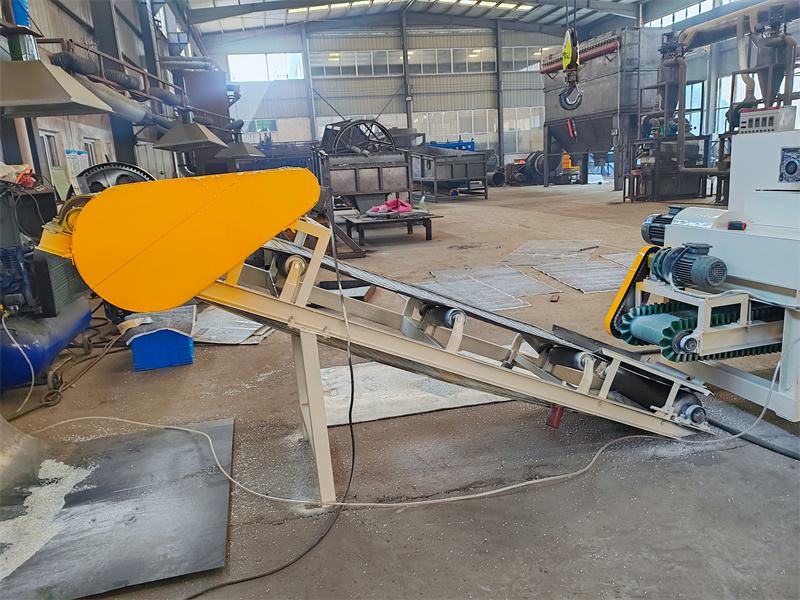

The Feeding Inlet is used to place waste solar panels into the Solar Panel Glass Removal Machine. The conveyor structure supports smooth feeding for PV panels with different sizes.

02

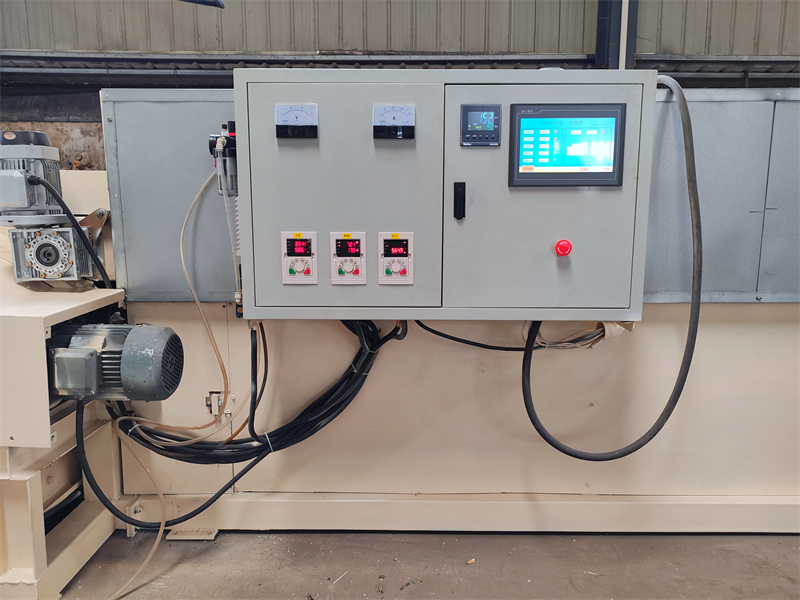

Electrical Box

The Electrical Box provides centralized control for the PV Module Recycling Equipment, supporting convenient operation and process adjustment.

03

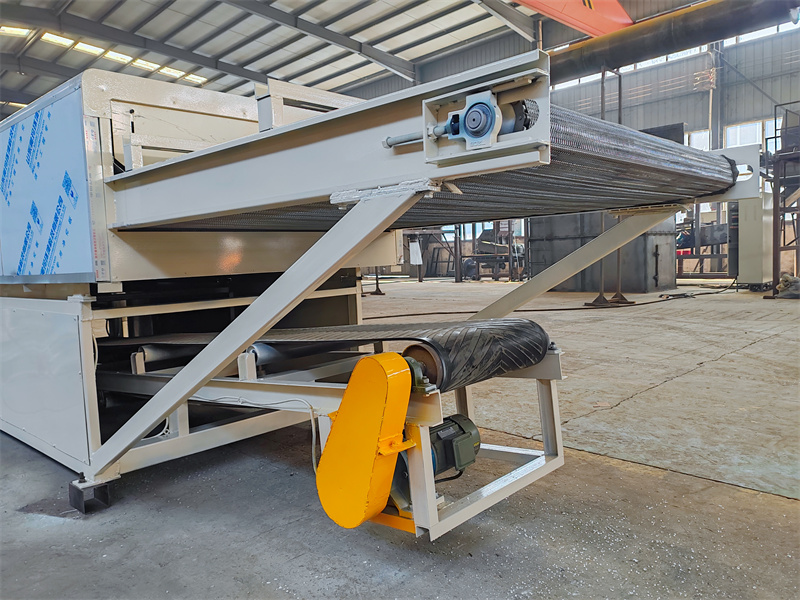

Glass Outlet

The Glass Outlet conveys the separated glass from the machine for collection, storage, or further glass recycling.

04

PV Backplane Outlet

The PV Backplane Outlet conveys the separated PV backplane material to the next processing stage of the Solar Panel Recycling Process.

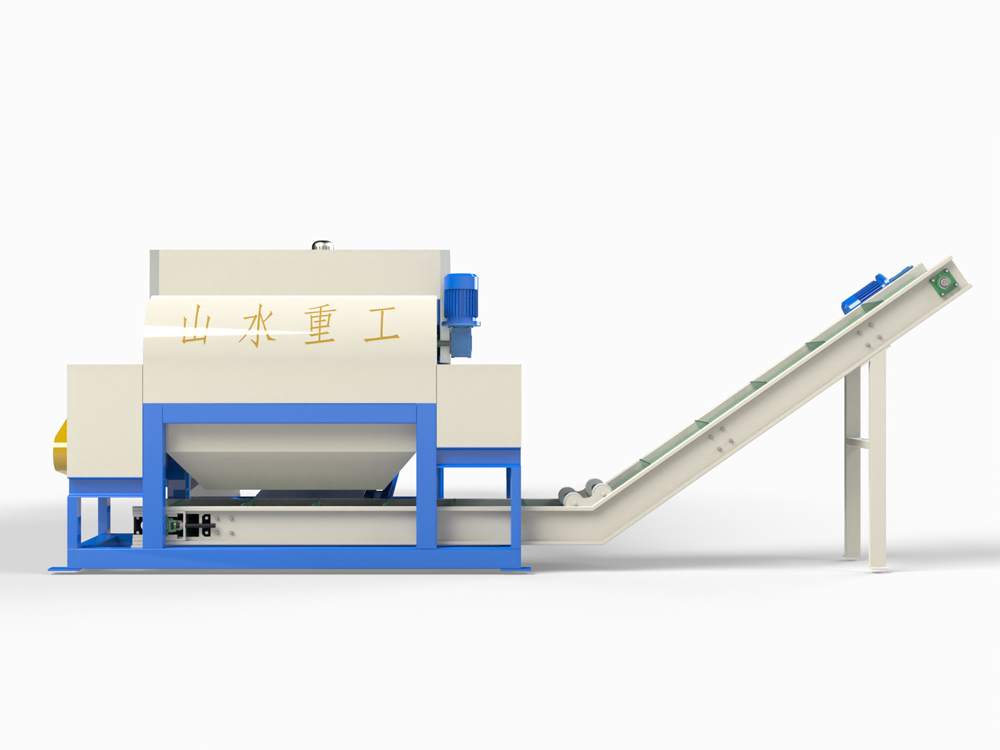

Solar Panel Glass Removal MachineView image ↗

02 / EQUIPMENT & PROJECTS

Technical Specifications

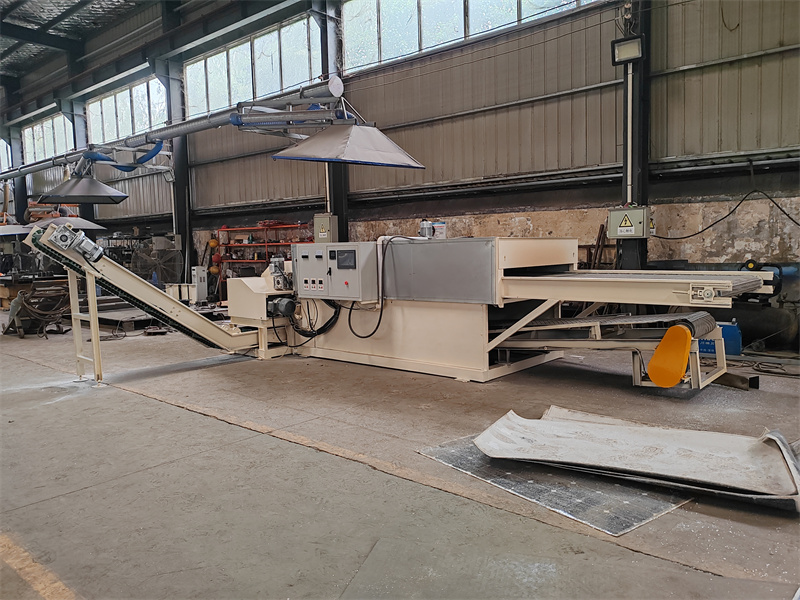

The Solar Panel Glass Removal Machine is a Semi-Automatic PV Module Recycling Equipment designed for the glass separation stage of Solar Panel Recycling Lines. It features a Feed Inlet, Heating Zone, Glass Removal Area, Glass Outlet, and PV Backplane Outlet. With a rated power of 53 KW, a processing capacity of 1000 KG/H, and a 380V 50Hz power supply, the machine is suitable for waste solar panel glass removal and photovoltaic material separation. The overall dimensions are 5500 × 4500 × 2000 mm, and the total weight is 2300 KG. The voltage can be customized according to project requirements.

Solar PV Panel Glass Removal Machine — Technical Specifications
Power53 kW
Voltage380 V / 50 Hz (customizable)
Overall Dimensions5500 × 4500 × 2000 mm
Total Weight2300 kg
Production Capacity1000 kg/h
Control MethodSemi-automatic

Specifications shown for the illustrated model. Contact us to confirm the configuration for your project.

PV Module Glass Removal EquipmentView image ↗

03 / EQUIPMENT & PROJECTS

Product Applications

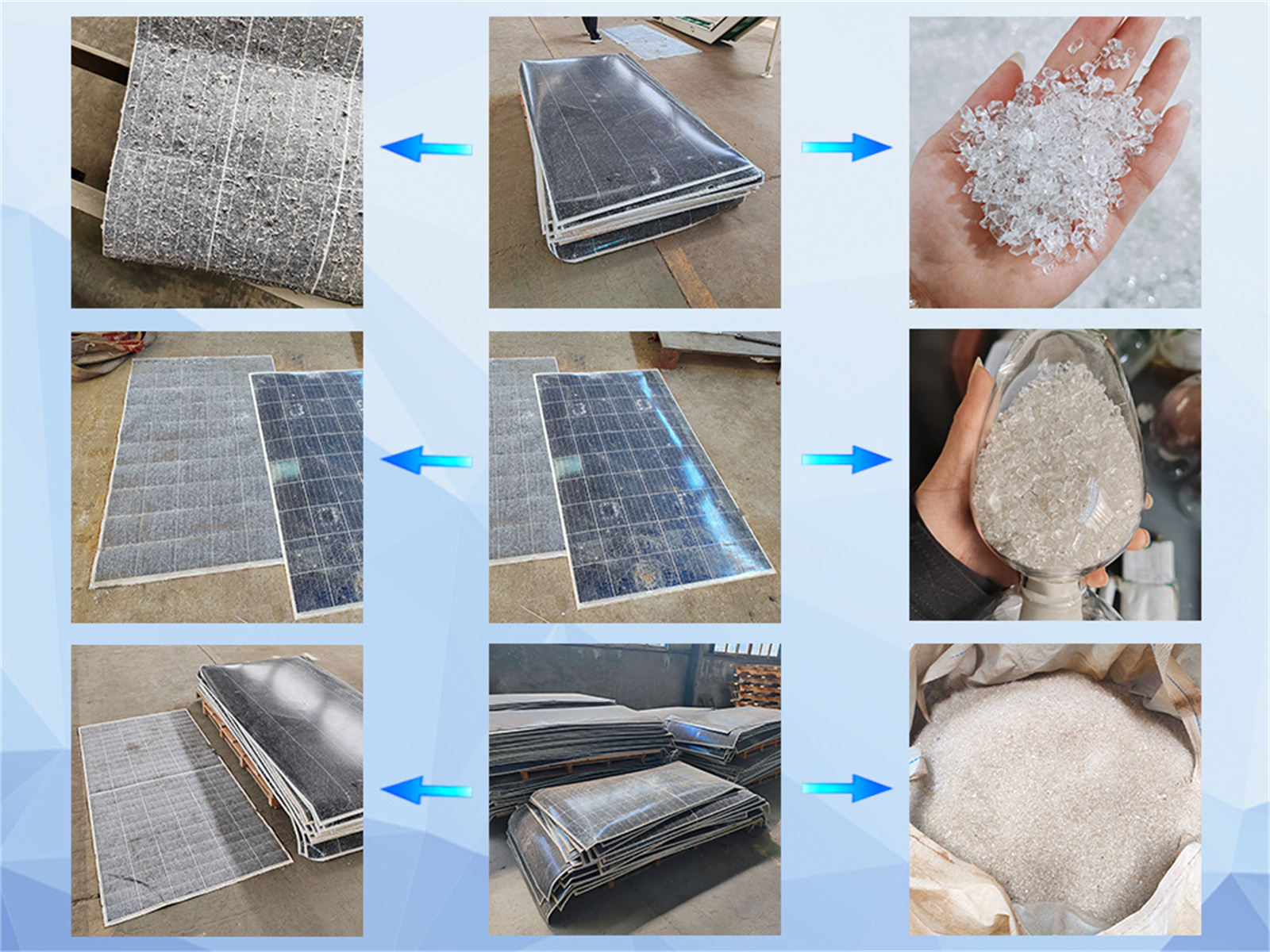

The PV Glass Removal Machine is designed for processing end-of-life solar panels and waste photovoltaic modules. It separates the glass layer from the PV laminate, helping improve material handling and prepare the recovered components for subsequent recycling processes.

After processing, the separated glass can be collected for further sorting, cleaning, and recycling. The glass-free PV laminate can then be transferred to the next stage of the Solar Panel Recycling Line for additional processing and material separation.

Solar Panel Glass Separation MachineView image ↗

04 / EQUIPMENT & PROJECTS

International Shipping Experience

Our Solar PV Panel Glass Removing Machine have been shipped to customers in multiple international markets. Before shipment, each machine is carefully inspected and prepared with suitable protective packaging and container-loading methods according to its structure. Shipping arrangements are coordinated based on the equipment specifications and destination requirements, supporting delivery for Solar Panel Recycling Projects and PV Module Recycling Lines .

Solar Panel Glass Separator Shipping CasesView image ↗

05 / EQUIPMENT & PROJECTS

Solar PV Panels Recycling Line Customer Site

Our Solar Panel Recycling Equipment, Photovoltaic Module Recycling Equipment, and other Solid Waste Recycling Solutions have been supplied to customers in Italy, Slovakia, Poland, Austria, Greece, the United States, the United Kingdom, South Korea, Japan, Taiwan, Hong Kong, India, Malaysia, Indonesia, and other markets. Through equipment applications in solar panel recycling, material separation, cable recycling, and electronic waste processing, we have developed project experience across different regional requirements and received positive feedback from customers.

Solar PV Panels Recycling Line Customer SiteView image ↗
Explore customer cases ↗

06 / EQUIPMENT & PROJECTS

Solar PV Panels Recycling Line Sales Areas

Solar PV Panels Recycling Line Sales AreasView image ↗
