SOLAR PV MODULE PRE-TREATMENT

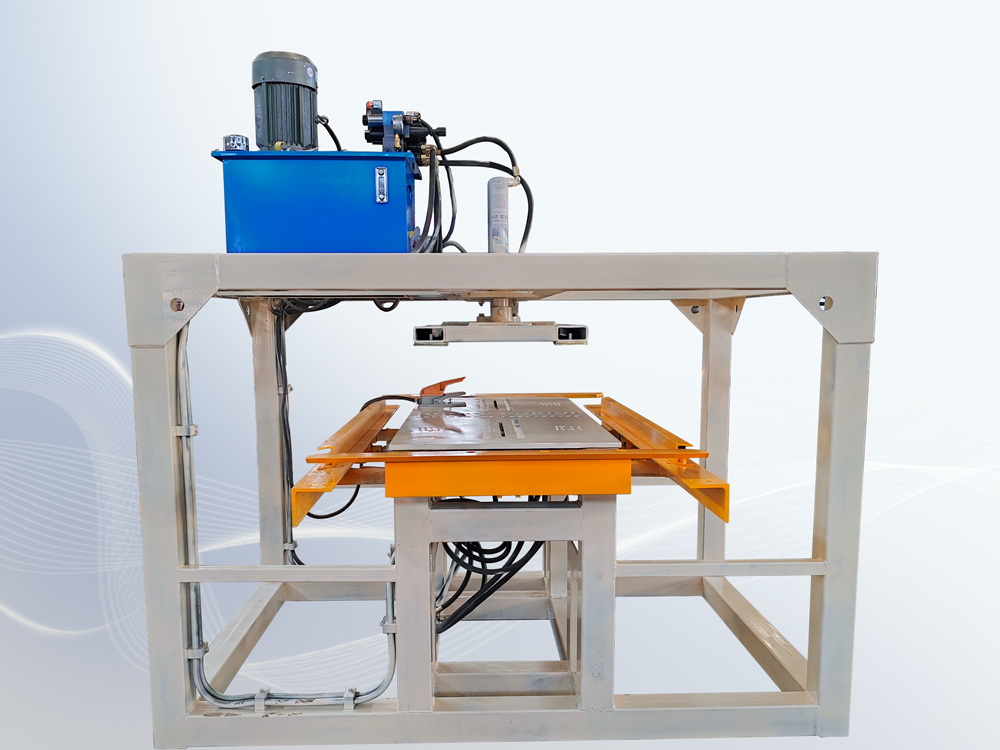

Solar Panel Aluminum Frame Removal Machine

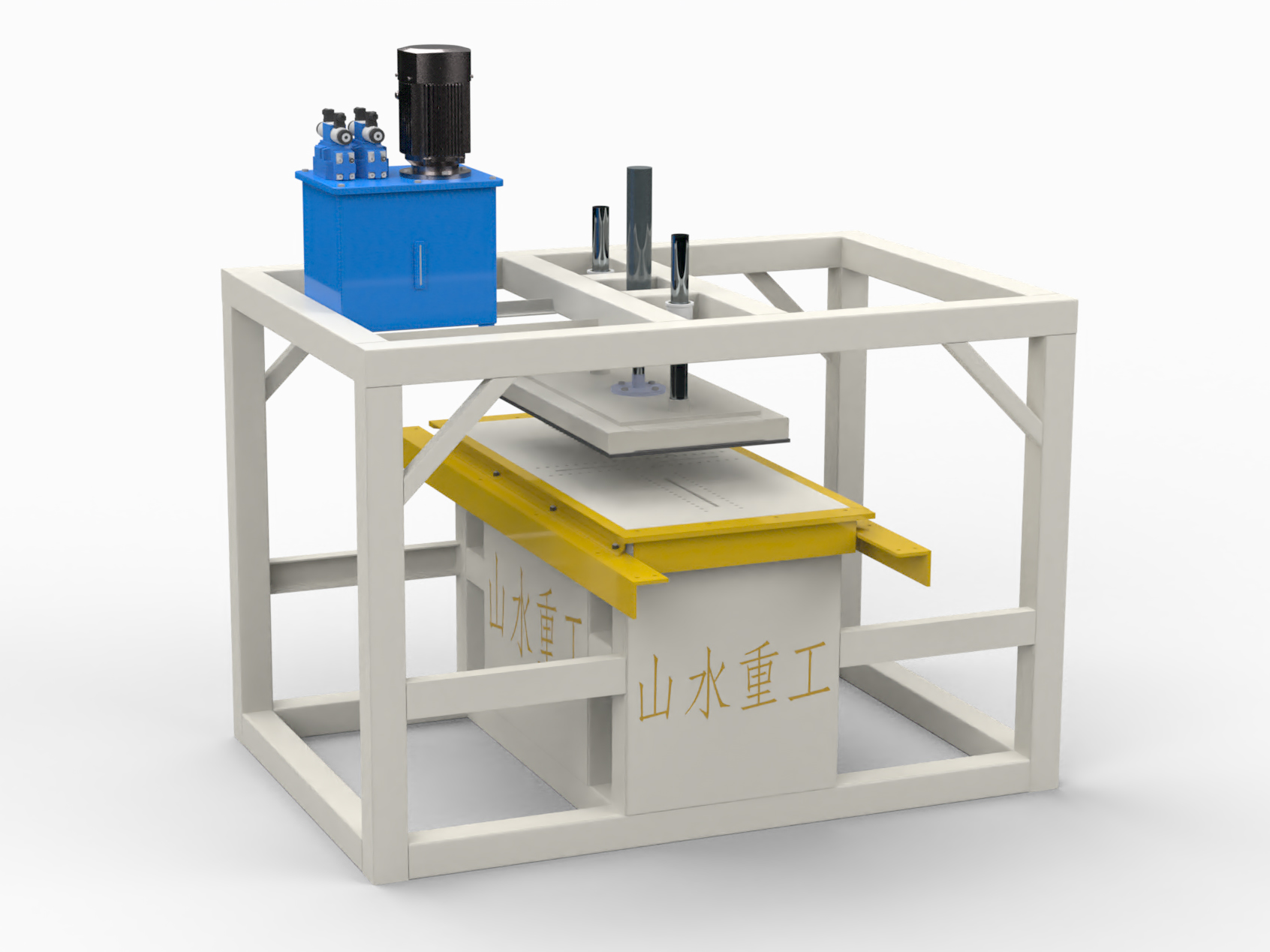

Solar Panel Aluminum Frame Removal Machine is used to separate aluminum frames from waste solar panels and photovoltaic modules before further recycling. The PV Module Frame Removal Machine includes a hydraulic module, placement platform, downward-pressure fixing device, and four-sided sliding disassembly system. After the panel is positioned and fixed, the hydraulic cylinders move the sliding system around the four sides of the PV module to remove the aluminum frame. The separated frame can be collected for aluminum recycling or resale, while the frameless PV module can proceed to the next recycling process.

AT A GLANCE

Product Features

Main Applications
Remove aluminum frames and junction boxes from waste solar panels.
Raw Materials
Waste solar PV panels and photovoltaic modules.
Main Final Products
Separated aluminum frames and junction boxes.
4 kWPower
15 sPer piece · stated cycle time

If you want to start your recycling business, feel free to contact us.

Chat on WhatsApp ↗+86 13253677742

Watch the aluminum frame removal machine in operation.

Recycling Solution Details

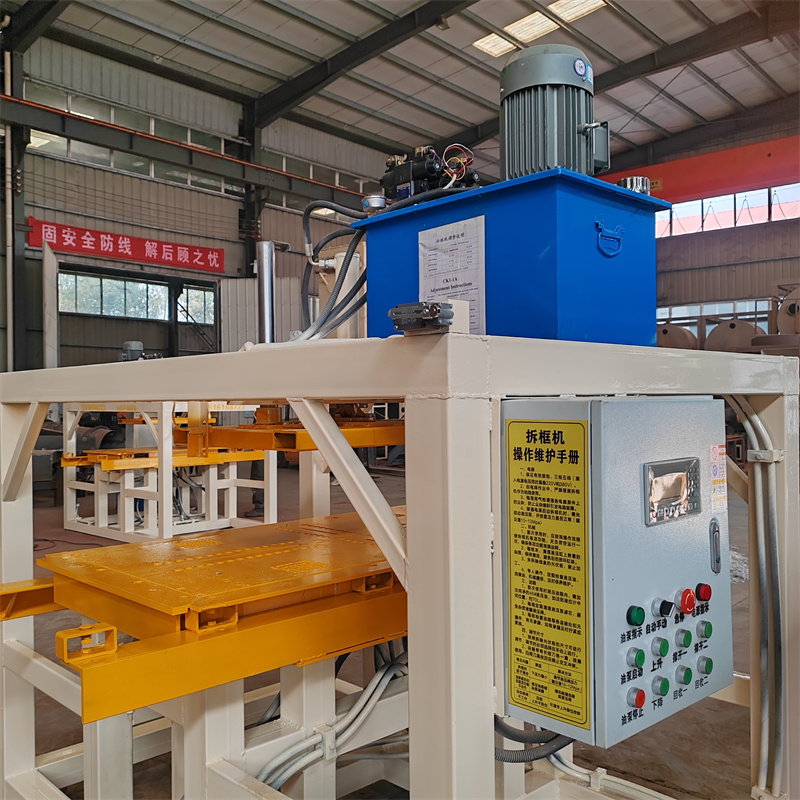

Solar Panel Aluminum Frame Removal MachineView image ↗

This Solar Panel Aluminum Frame And Junction Box Removal Machine uses mechanical or hydraulic structures to separate aluminum frames and junction boxes from waste PV modules. As a Solar Panel Deframing Machine and PV Module Recycling Equipment, it helps reduce repetitive manual disassembly work. The separated aluminum frames and junction boxes can be collected for further recycling, storage, or resale through suitable local channels.

01 / EQUIPMENT & PROJECTS

Product Introduction

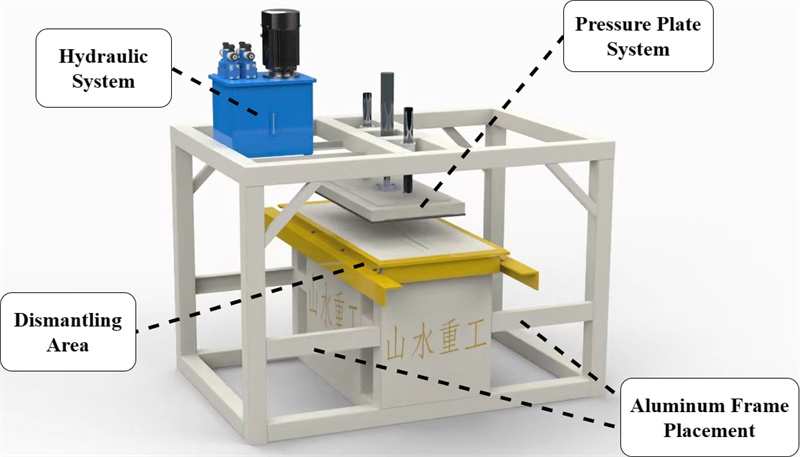

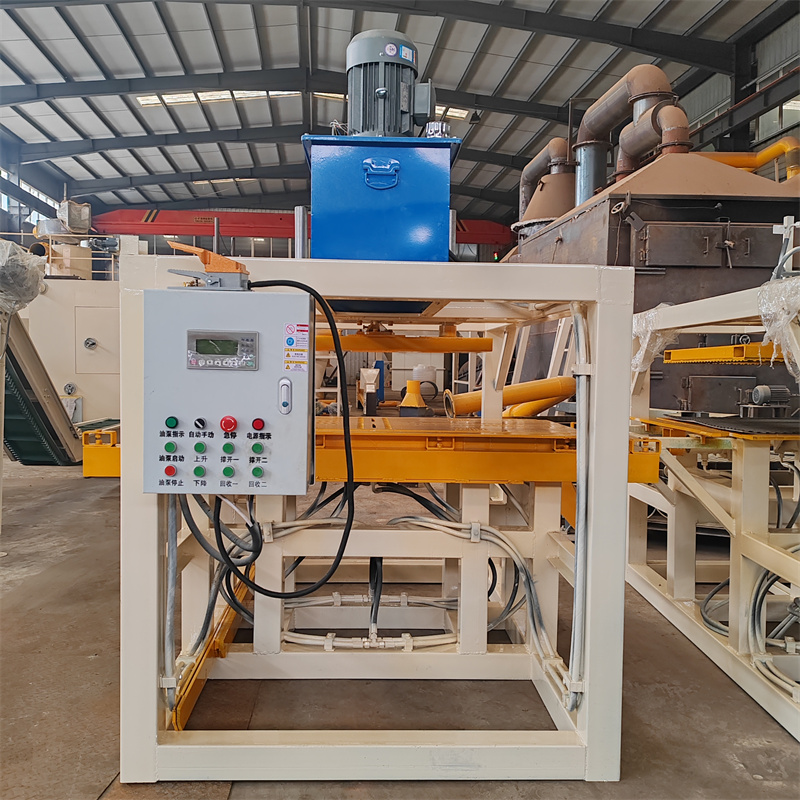

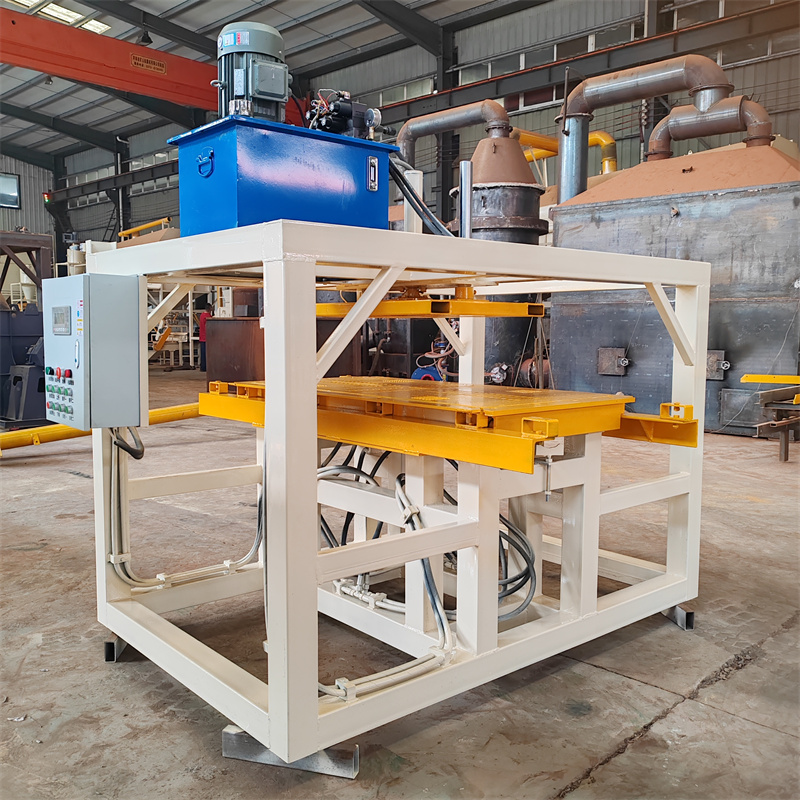

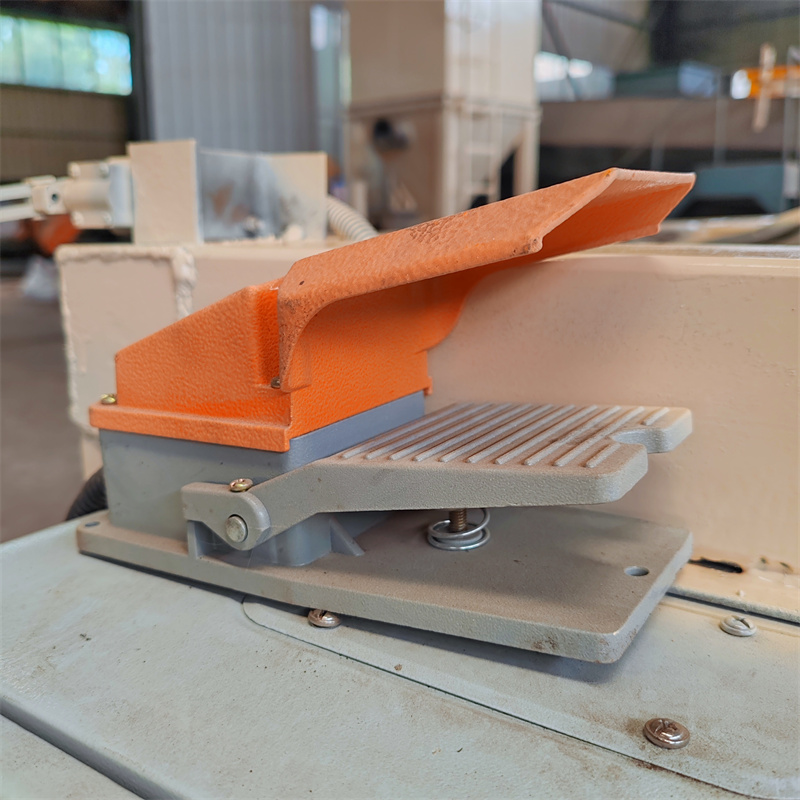

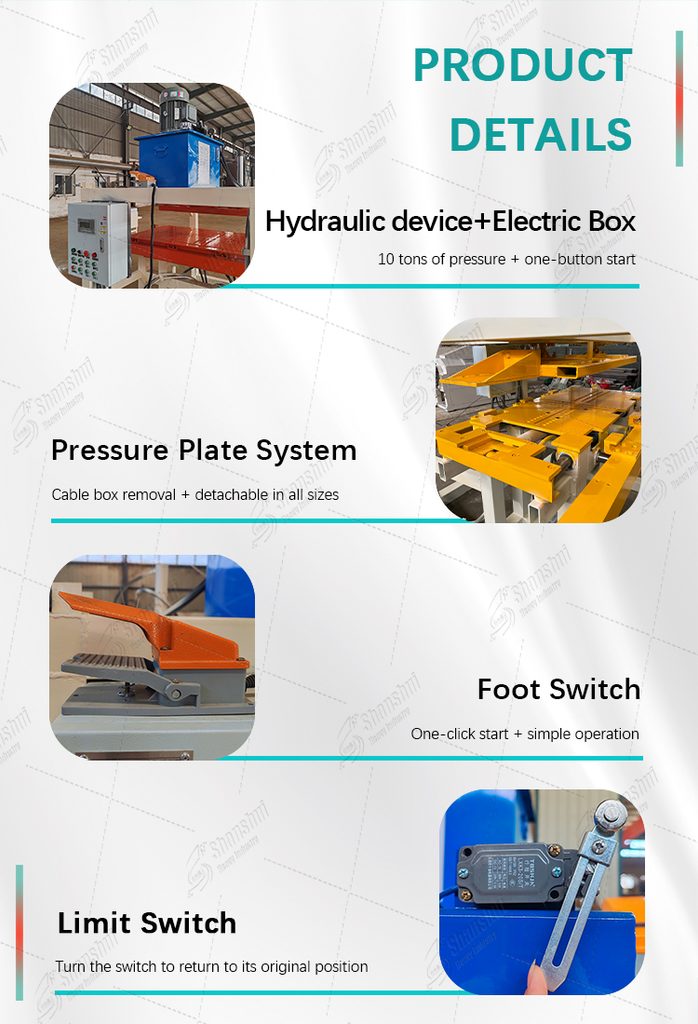

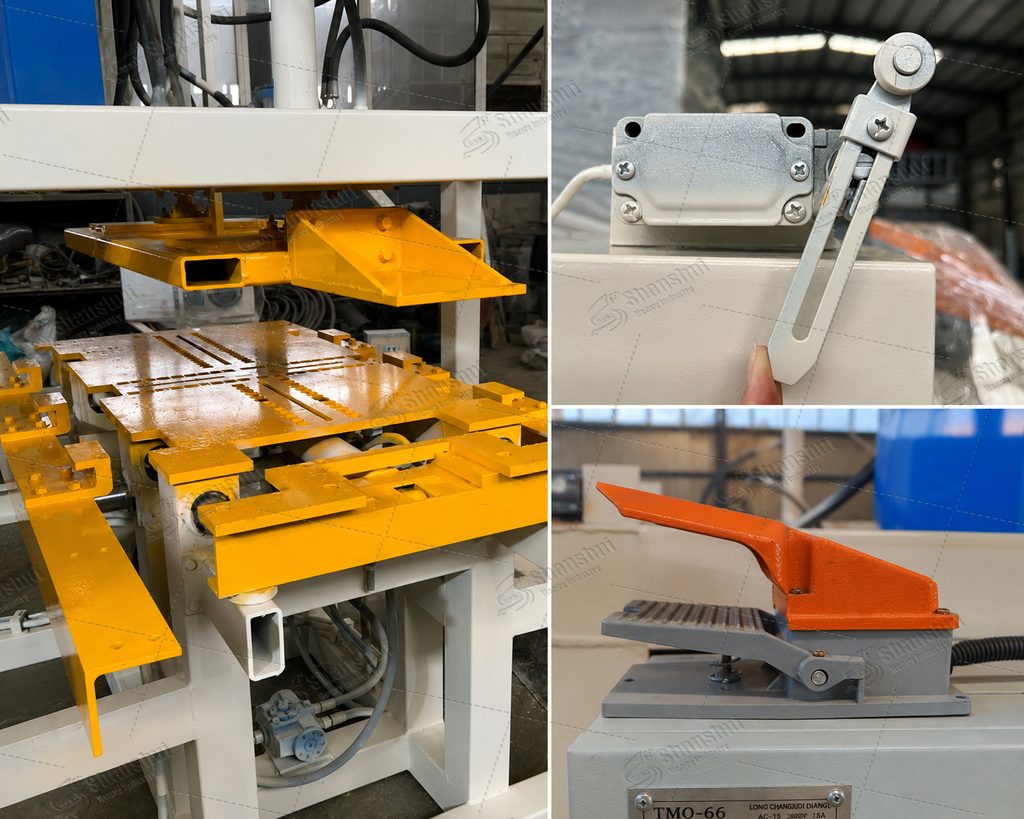

The equipment features a Hydraulic System, Pressure Plate System, Aluminum Frame Removal Area, Junction Box Removal Area, Foot Switch, and Limit Switch. These components support panel positioning, aluminum frame separation, and junction box removal during the PV recycling process. As a Solar Panel Deframing Machine and Solar Panel Frame Dismantling Machine, it is suitable for Solar Panel Recycling Lines, Aluminum Frame Removal, and Junction Box Removal applications.

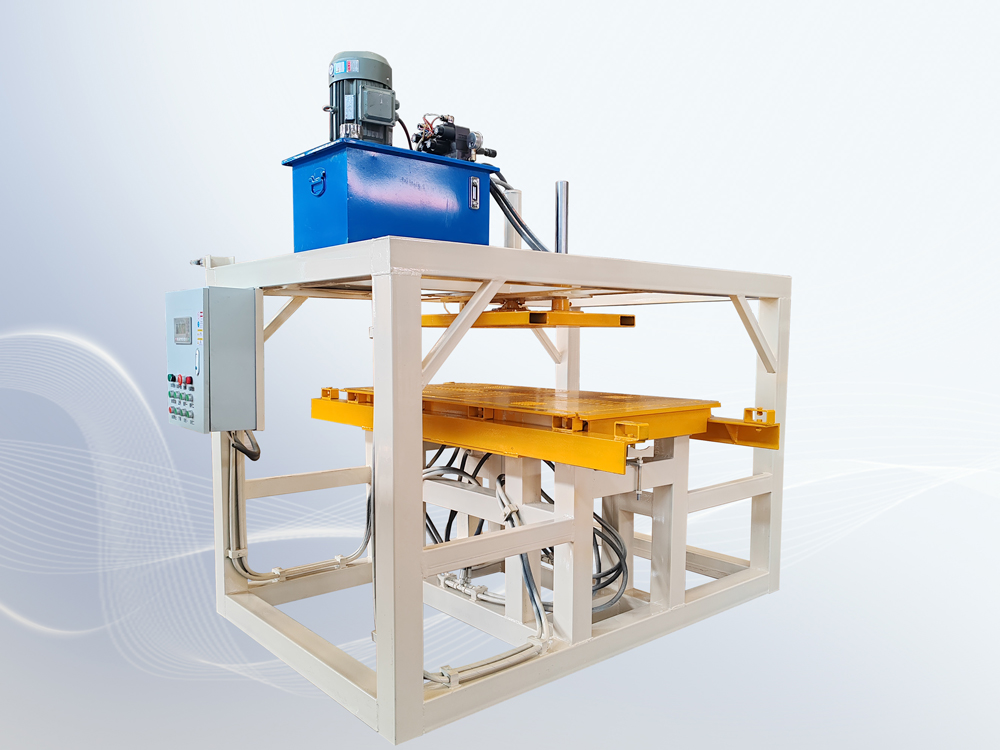

Solar Panel Deframing MachineView image ↗

02 / EQUIPMENT & PROJECTS

Technical Specifications

The Solar Panel Frame Removal Machine is a Semi-Automatic PV Module Recycling Equipment designed for aluminum frame and junction box removal from waste solar panels. It features a Hydraulic System, Pressure Plate System, Frame Removal Area, and Junction Box Removal Area, supporting the pre-treatment process of solar panel recycling.

Solar Panel Frame Removal Machine — Technical Specifications
Power4 kW
Voltage380 V / 50 Hz (customizable)
Overall Size2350 × 2100 × 2200 mm
Total Weight1000 kg
Production Capacity15 s/piece
Control MethodSemi-automatic

Specifications shown for the illustrated model. Contact us to confirm the configuration for your PV modules and project.

01

Hydraulic System

The Hydraulic System provides power for panel pressing and aluminum frame removal during the Solar Panel Recycling Process.

02

Pressure Plate System

The Pressure Plate System presses and holds the PV module in position, supporting stable operation during the Solar Panel Frame Removal Process.

03

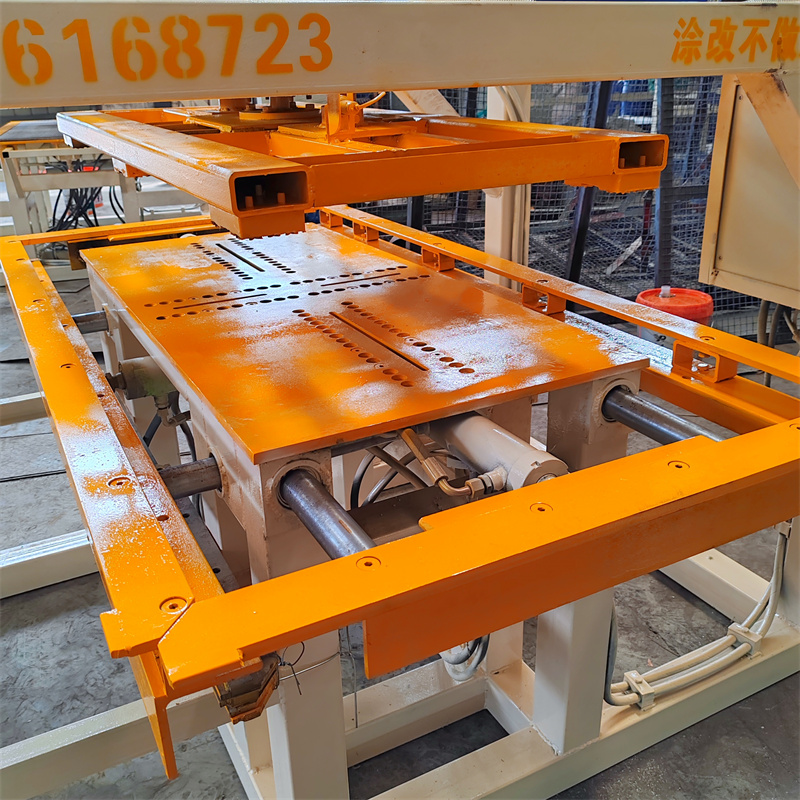

Frame Removal Area

The Frame Removal Area is designed to separate aluminum frames from waste solar panels and PV modules. It is a key section of the Solar Panel Deframing Machine.

04

Junction Box Removal Area

The Junction Box Removal Area is used to separate junction boxes from PV modules before further PV Module Recycling and material processing.

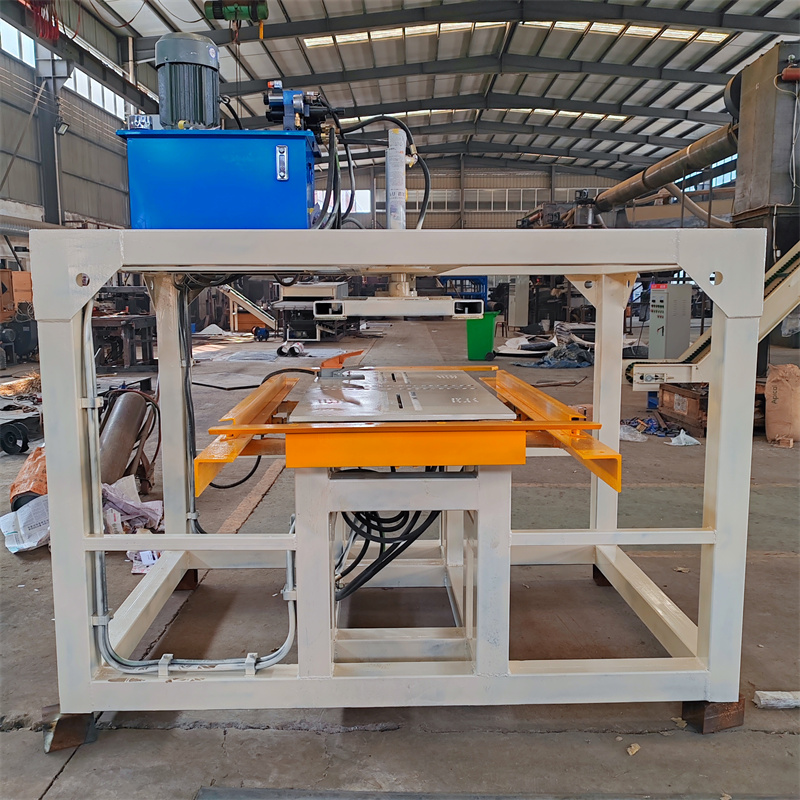

Solar Panel Frame Dismantling MachineView image ↗

03 / EQUIPMENT & PROJECTS

Product Applications

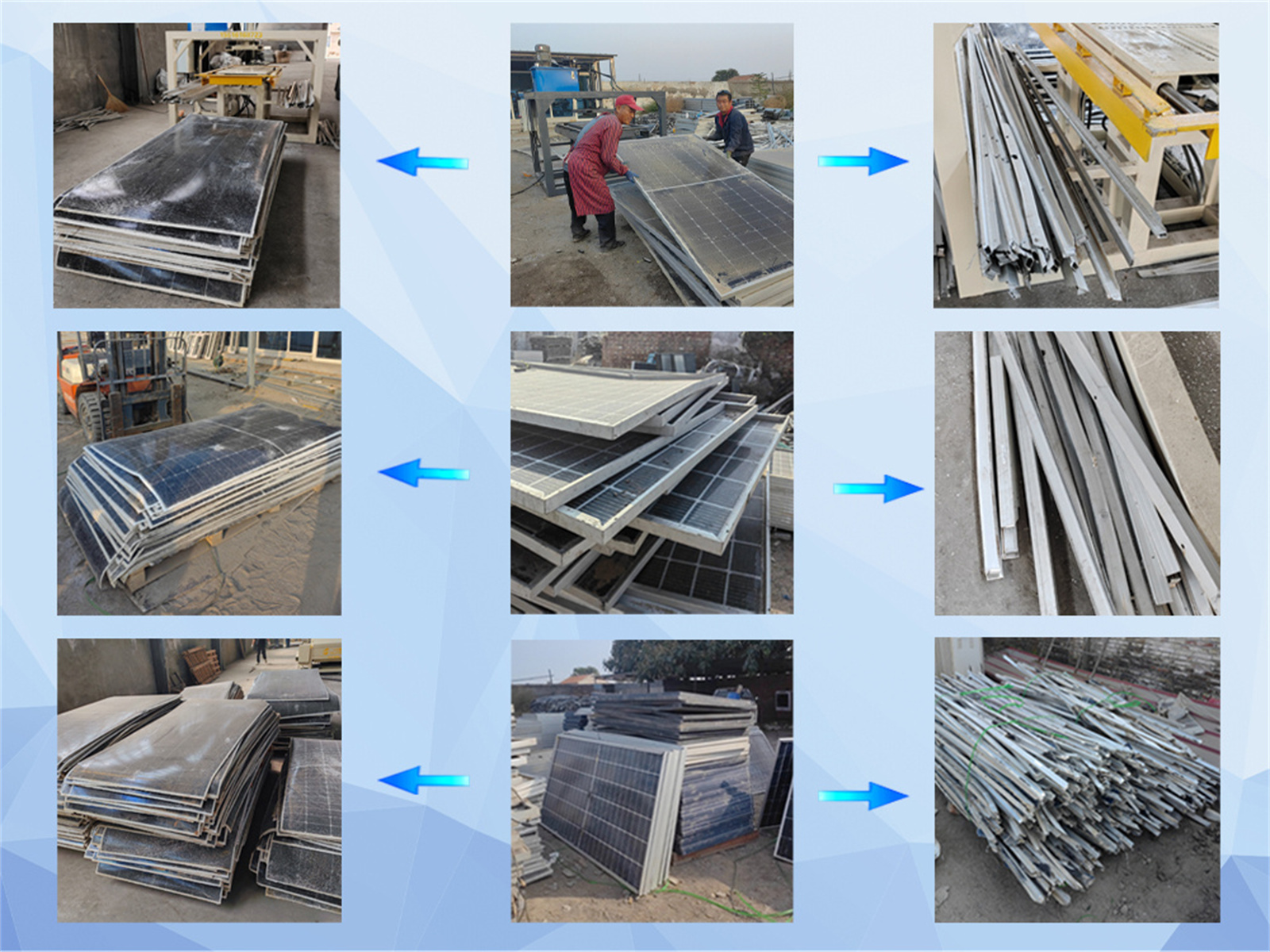

The PV Frame Removal Machine is used for the pre-treatment of waste PV Panels and photovoltaic modules. After the panel is processed by the Solar Panel Frame Removal Machine, the aluminum frame and junction box can be separated from the de-framed PV module for further recycling and material processing. The separated aluminum frames can be collected for aluminum recycling, while the junction boxes and cables can be sorted for further processing. The de-framed PV module can continue to the next stage of the PV Module Recycling Process, such as glass separation, crushing, or material sorting.

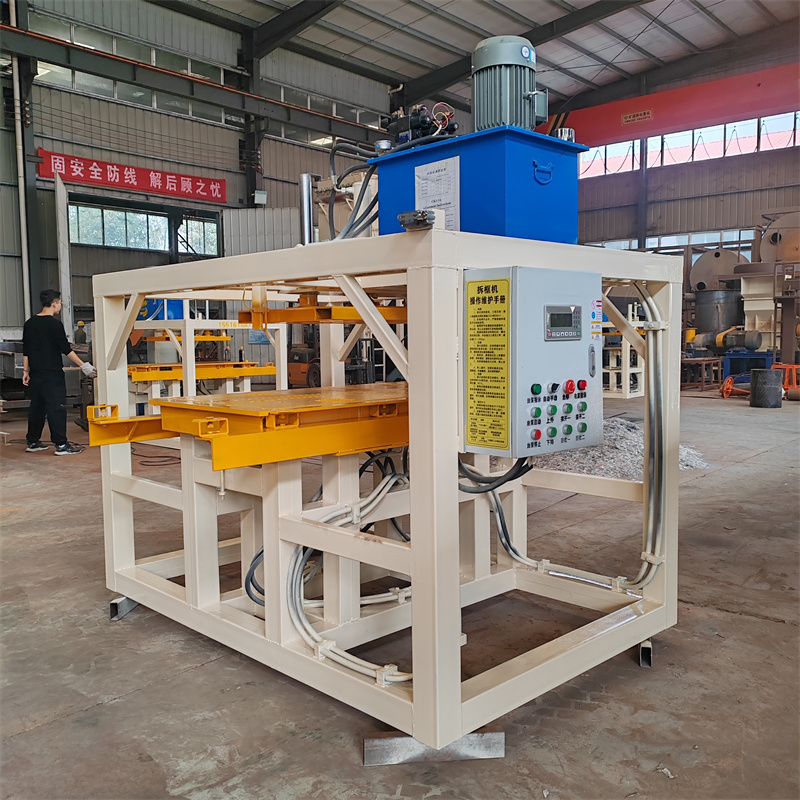

Solar Panel Frame Removal MachineView image ↗

04 / EQUIPMENT & PROJECTS

International Shipping Experience

Our Solar Panel Aluminum Frame Removal Machines have been shipped to customers in multiple international markets. Before shipment, each machine is carefully inspected and prepared with suitable protective packaging and container-loading methods according to its structure. Shipping arrangements are coordinated based on the equipment specifications and destination requirements, supporting delivery for Solar Panel Recycling Projects and PV Module Recycling Lines .

Solar Panel Frame Removal Machines Shipping CasesView image ↗

05 / EQUIPMENT & PROJECTS

Solar PV Panels Recycling Line Customer Site

Our Solar Panel Recycling Equipment, Photovoltaic Module Recycling Equipment, and other Solid Waste Recycling Solutions have been supplied to customers in Italy, Slovakia, Poland, Austria, Greece, the United States, the United Kingdom, South Korea, Japan, Taiwan, Hong Kong, India, Malaysia, Indonesia, and other markets. Through equipment applications in solar panel recycling, material separation, cable recycling, and electronic waste processing, we have developed project experience across different regional requirements and received positive feedback from customers.

Solar PV Panels Recycling Line Customer SiteView image ↗
Explore customer cases ↗

06 / EQUIPMENT & PROJECTS

Solar PV Panels Recycling Line Sales Areas

Solar PV Panels Recycling Line Sales AreasView image ↗
