Waste Lithium Battery Recycling And Processing Equipment
Product Introduction

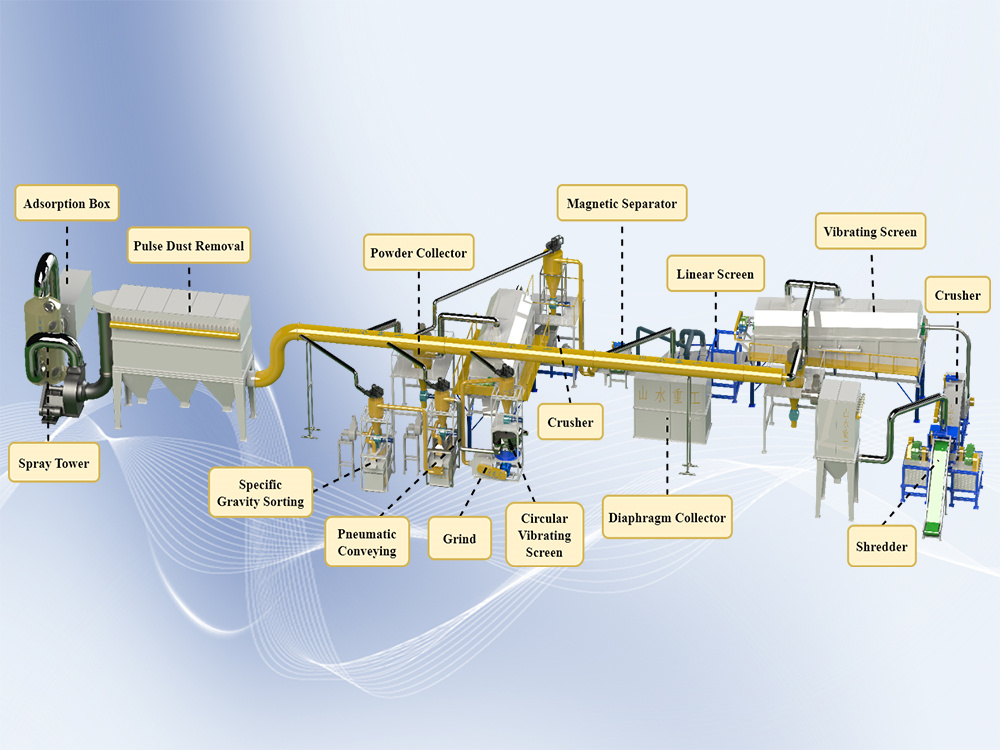

The main components of lithium batteries are lithium iron phosphate, graphite, aluminum plastic film, separator, etc., which have high recycling value. The waste lithium battery recycling equipment production line produced by our factory mainly includes shredders, crushers, drum screens, linear screens, grinding and screening machines, specific gravity separators, etc. It can efficiently dismantle lithium batteries. It first discharges the battery, and then separates the separator, lithium iron phosphate powder, copper, aluminum and other metals through shredding, crushing, grinding, sorting and other equipment, which can realize the separation of component materials. Fine processing, effective extraction of valuable ingredients, and promotion of resource recycling.
description2
0102030405060708091011121314

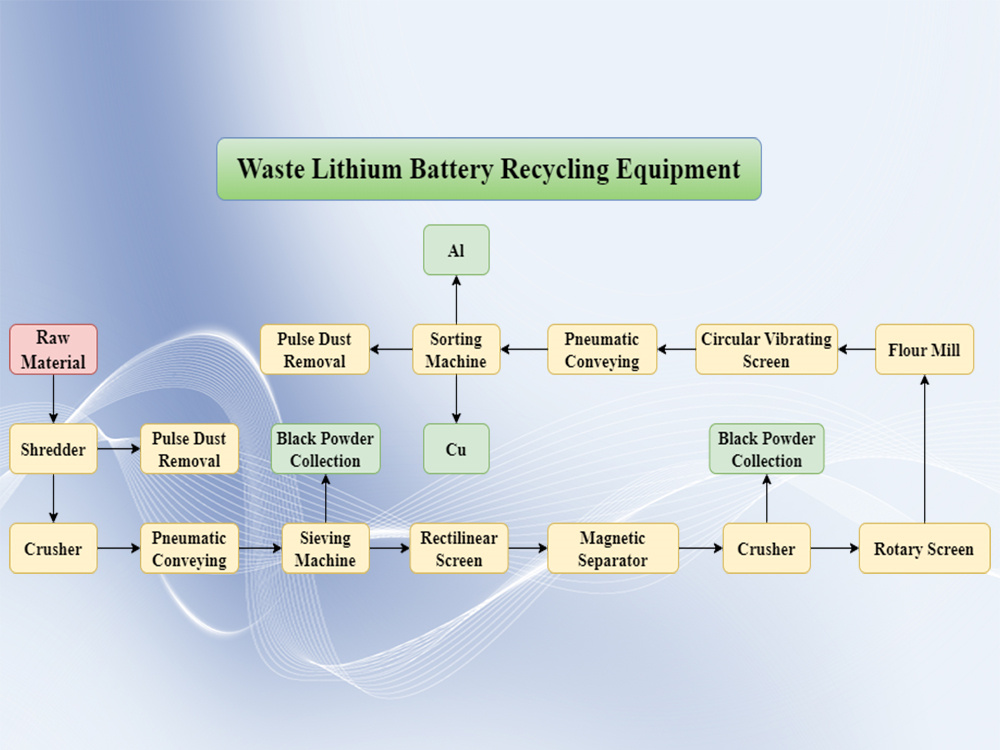

Recycling process
1. Shredding stage. The waste lithium battery raw materials are sent to the shredder through a belt conveyor to be shredded into flakes.
2. Crushing stage. The lithium battery fragments are transported by a belt conveyor to the crusher to be crushed into smaller materials.

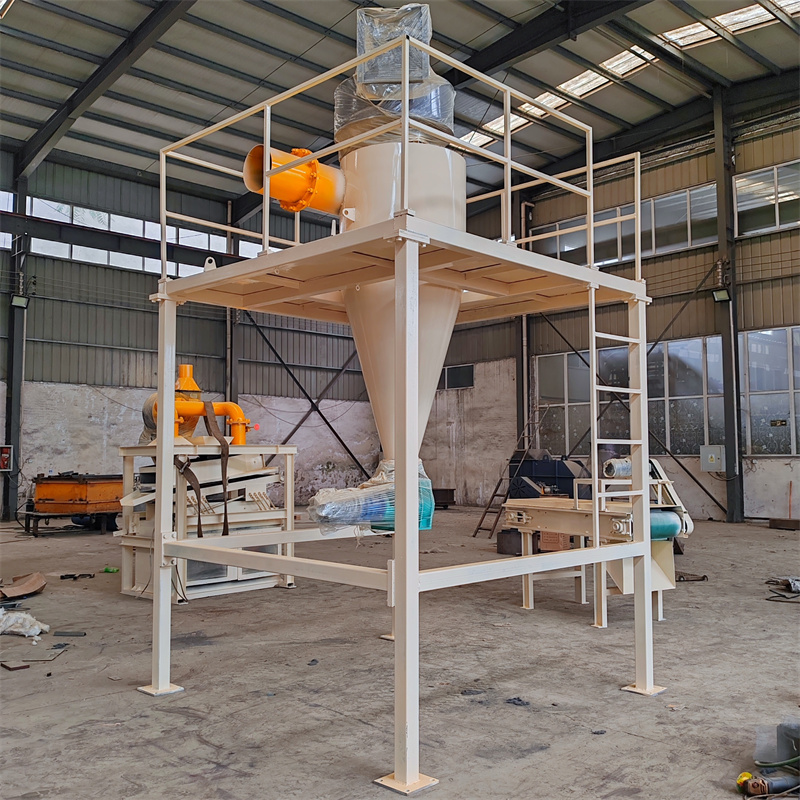

3. Primary screening stage. The materials are transported to the vibrating screen by pneumatic conveying to sort out some lithium powder for the first time, and at the same time, the diaphragm collector will collect the plastic.
4. Magnetic separation stage. The remaining materials enter the linear screen, and the magnetic separator automatically screens out the iron metal.
5. Crushing stage. The remaining materials enter the crusher and are crushed into foam.

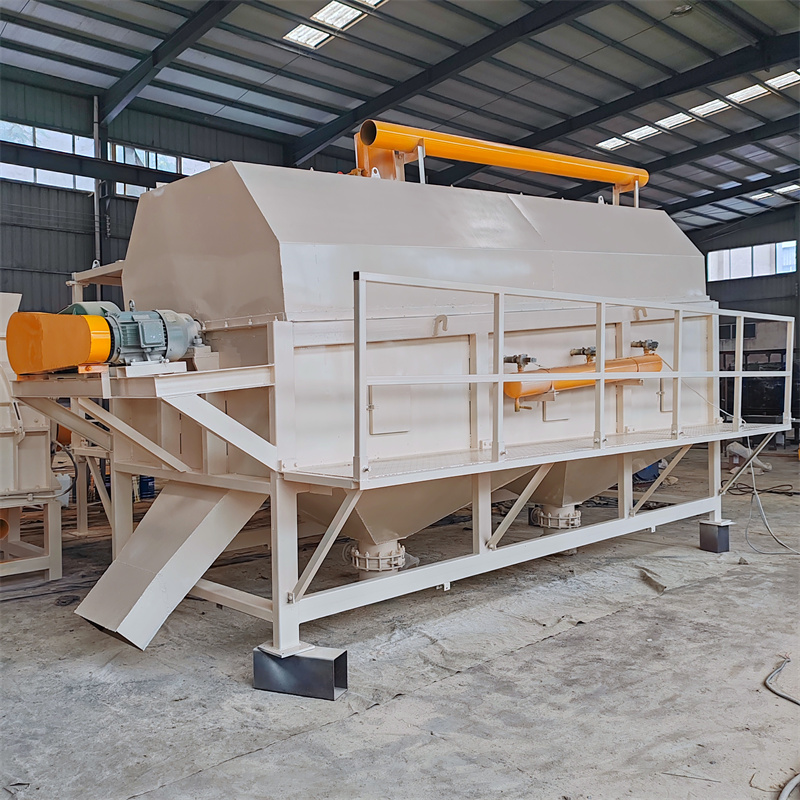

6. Intermediate screening stage. The crushed materials enter the drum screen again to screen out the lithium powder again.

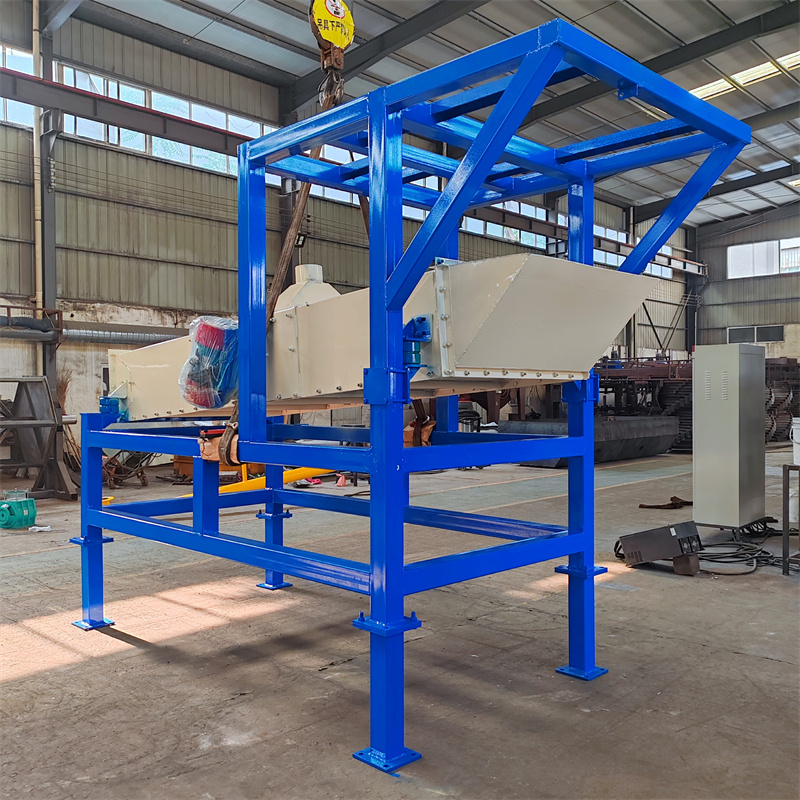

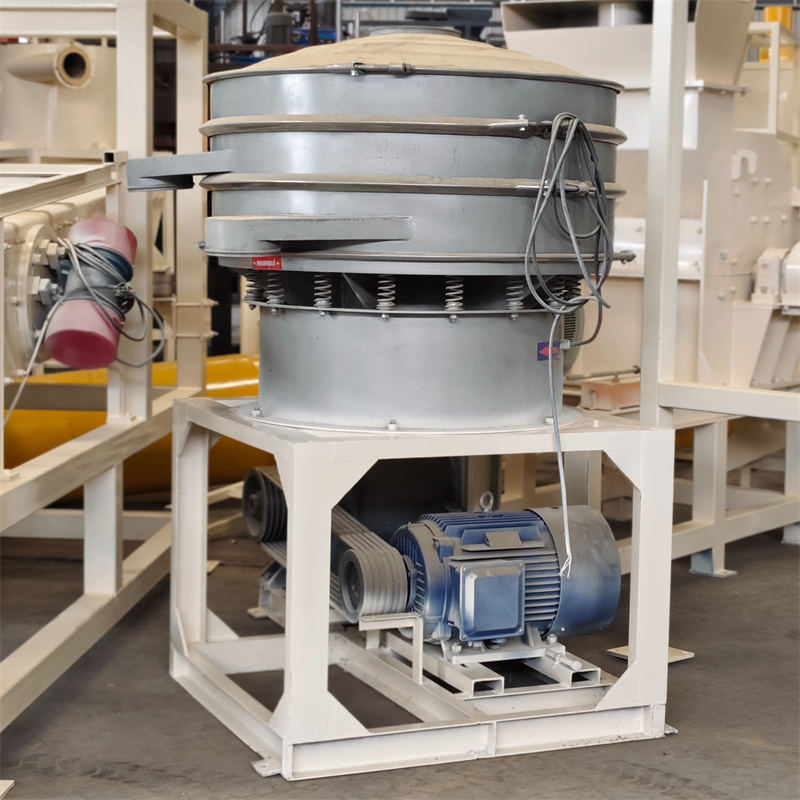

7. High-pole screening stage. The remaining materials enter the mill and the circular vibrating screen to screen out the copper-aluminum particle mixture and the remaining lithium powder.
8. Final screening stage. The copper-aluminum mixture particles are pneumatically conveyed into the specific gravity separator to screen out pure copper and pure aluminum metals.

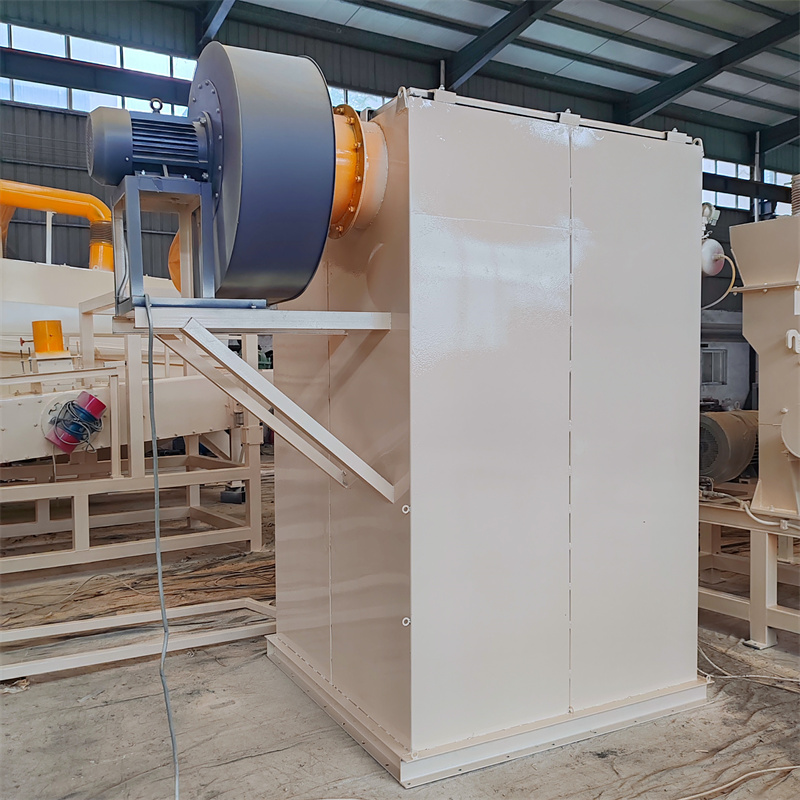

9. Centralized dust removal. Each of our equipment will be equipped with dust removal equipment to avoid environmental pollution during the recycling and treatment of waste.
