Solar Panel Recycling Equipment Mills And Vibrating Screens

Solar Panel Recycling Equipment Mills And Vibratin01.jpg

Solar Panel Recycling Equipment Mills And Vibratin02.jpg

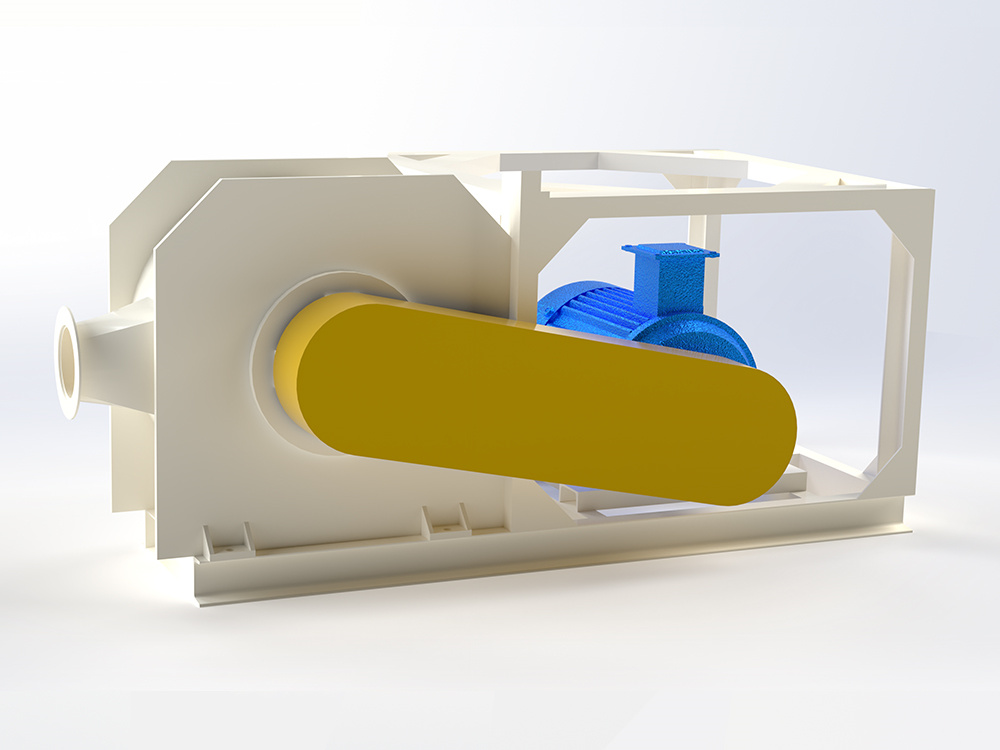

Solar Panel Recycling Equipment Mills And Vibratin03.jpg

The solar panel mill is specially designed for grinding and processing solar panels. Through efficient crushing and grinding actions, the solar panel materials can be crushed, providing a suitable particle size material basis for subsequent resource recovery and material separation processes. The rotary vibrating screen uses the rotational vibration force generated by a special vibration motor to accurately screen silicon powder and EVA in the material. The combination of the grinding mill and the rotary vibrating screen allows materials of different particle sizes to be quickly and accurately sorted out during solar panel recycling, ensuring the orderly advancement of the entire recycling process.

product details

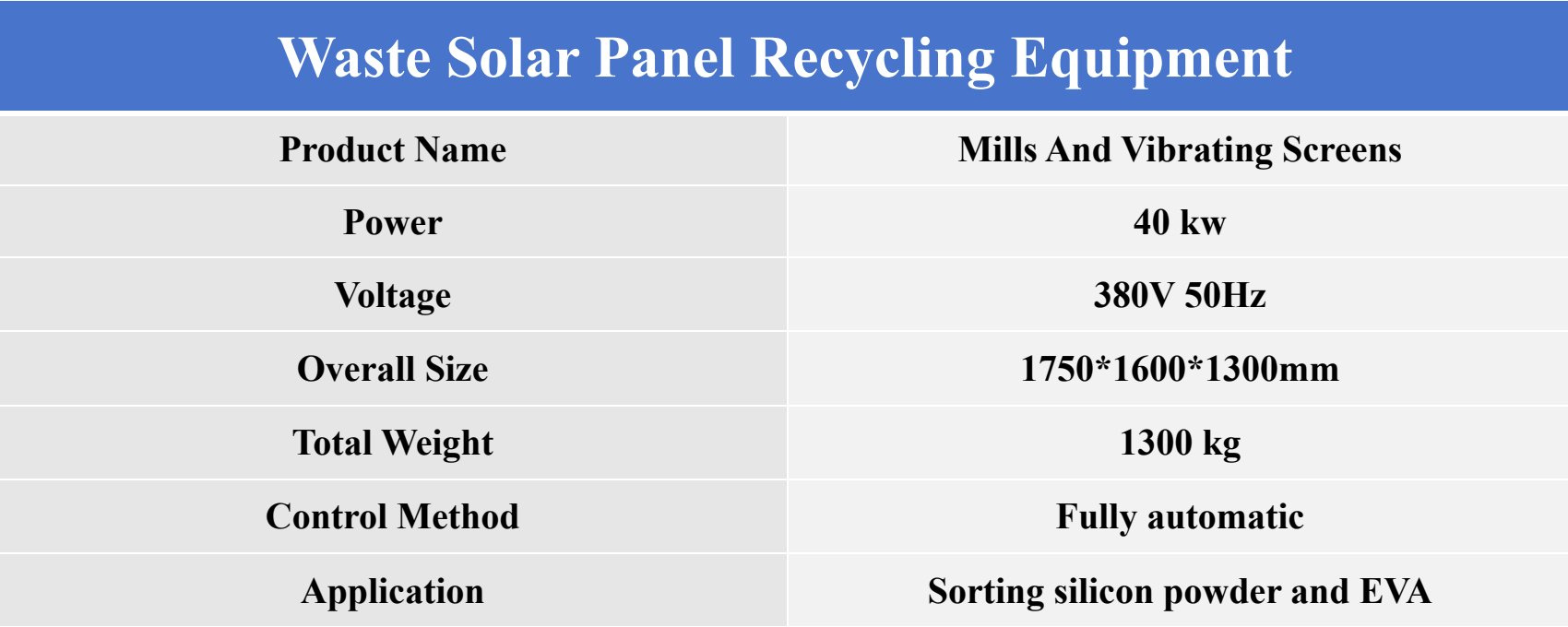

Product Introduction

A mill is a device used to crush and grind solid materials into fine powder. Its working principle is mainly to impact, squeeze and grind materials inside the rotating mill barrel through grinding media. When the cylinder rotates, the grinding medium is brought to a certain height and then falls, causing impact on the material. At the same time, during the rotation of the cylinder, the friction and extrusion between the media and between the medium and the cylinder wall will also impact the material grind.

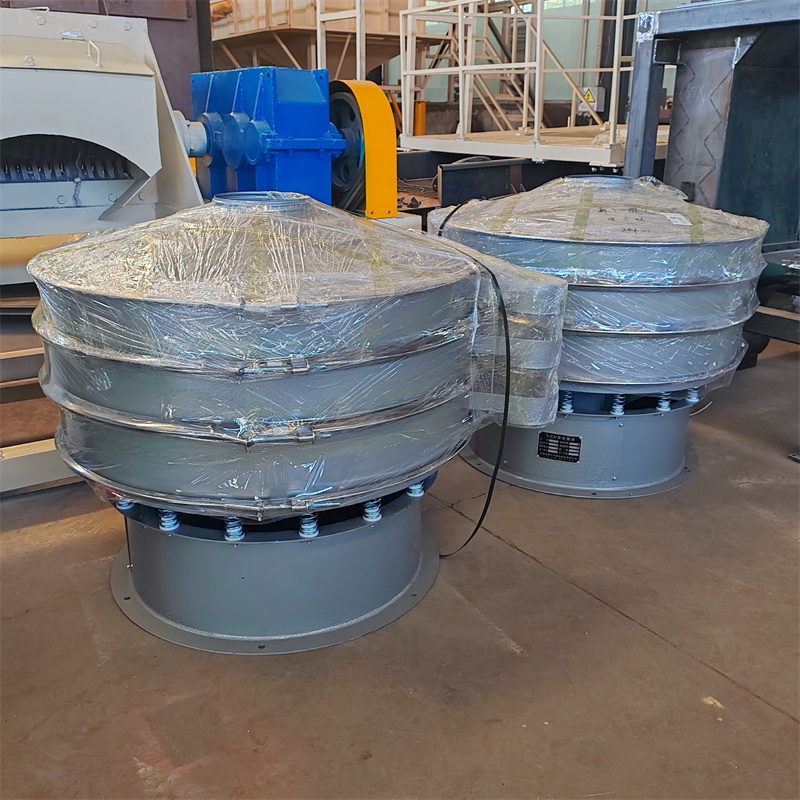

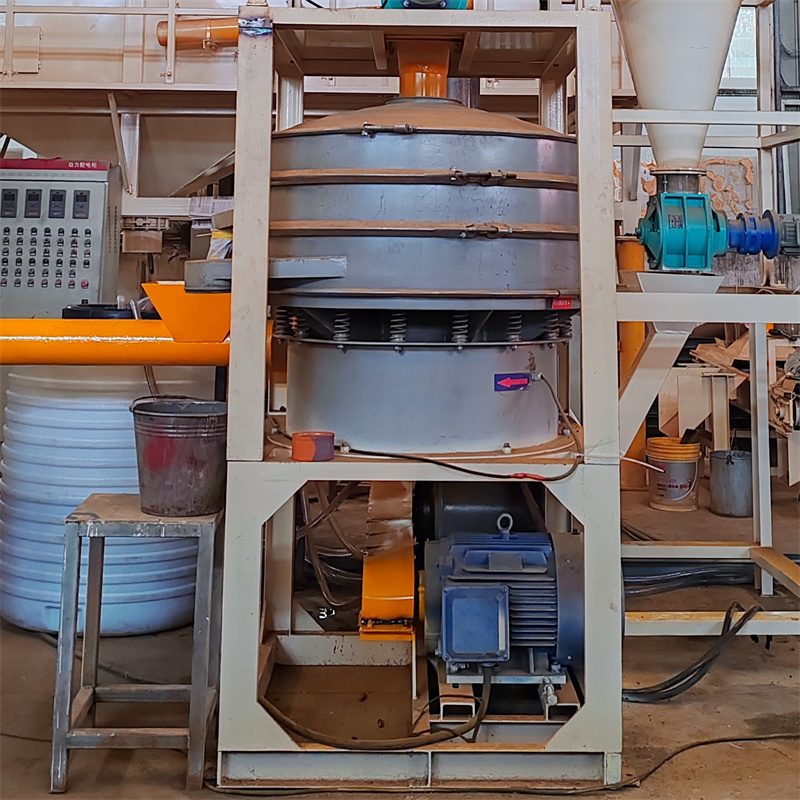

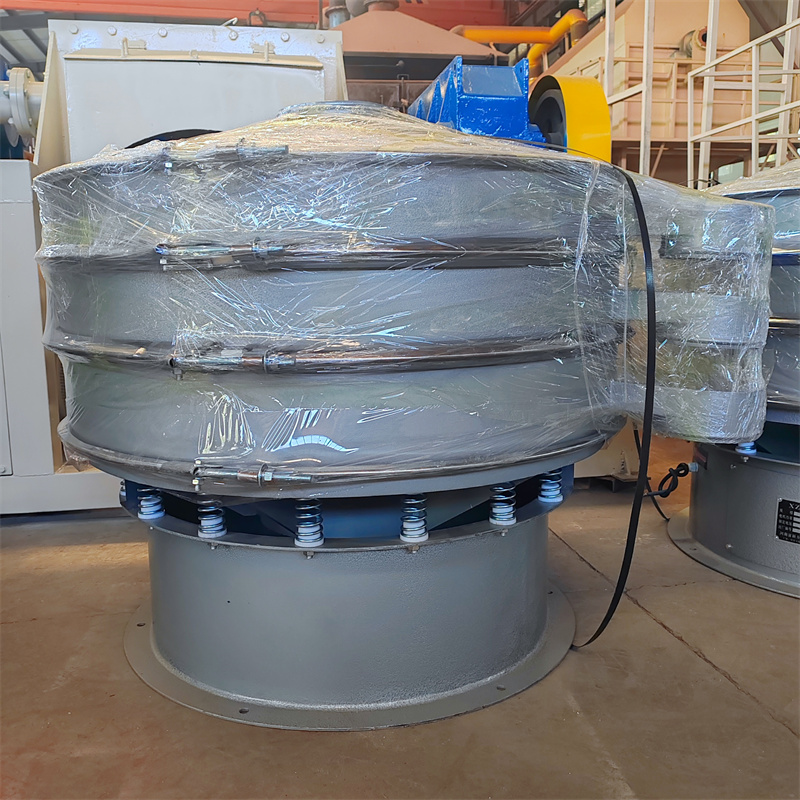

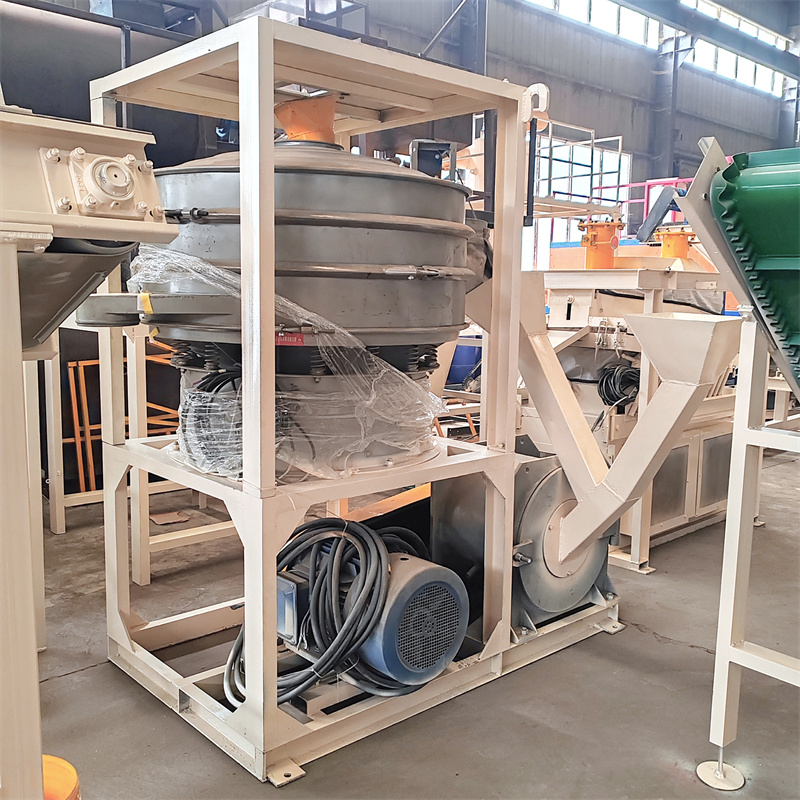

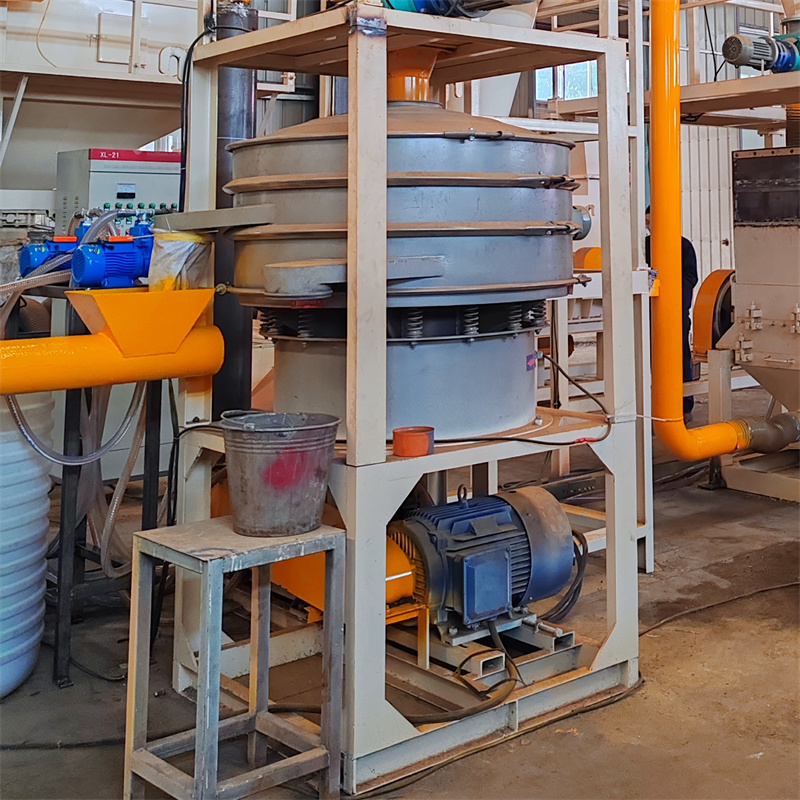

The rotary vibrating screen is a high-precision fine powder screening equipment. It mainly uses an upright motor as the excitation source. Eccentric weights are installed on the upper and lower ends of the motor to convert the rotational motion of the motor into horizontal, vertical, and tilted three-dimensional motion, and then transfer this motion to the screen surface. When the material enters the screen surface, under the vibration of the screen surface, the particles smaller than the screen hole size fall through the holes, while the particles larger than the screen hole size remain on the screen surface, thereby realizing the screening of materials.

description2

Product Features

1. Good grinding effect. The mill can accurately control the final particle size of the material by adjusting parameters such as grinding time, type of grinding media, and mill speed.

2. High-precision screening. The rotary vibrating screen causes the materials to present complex motion trajectories on the screen surface, effectively achieving high-precision screening of fine powder materials.

3. Adapt to a variety of materials. The combination of grinding mill and rotary vibrating screen can handle solid materials of various hardness and properties, and screen materials of different properties.

4. The equipment has good performance. The structure is reasonably designed and adopts high-quality grinding and shock-absorbing devices to ensure the stability and reliability of the equipment during operation.

0102030405060708

Recycling process

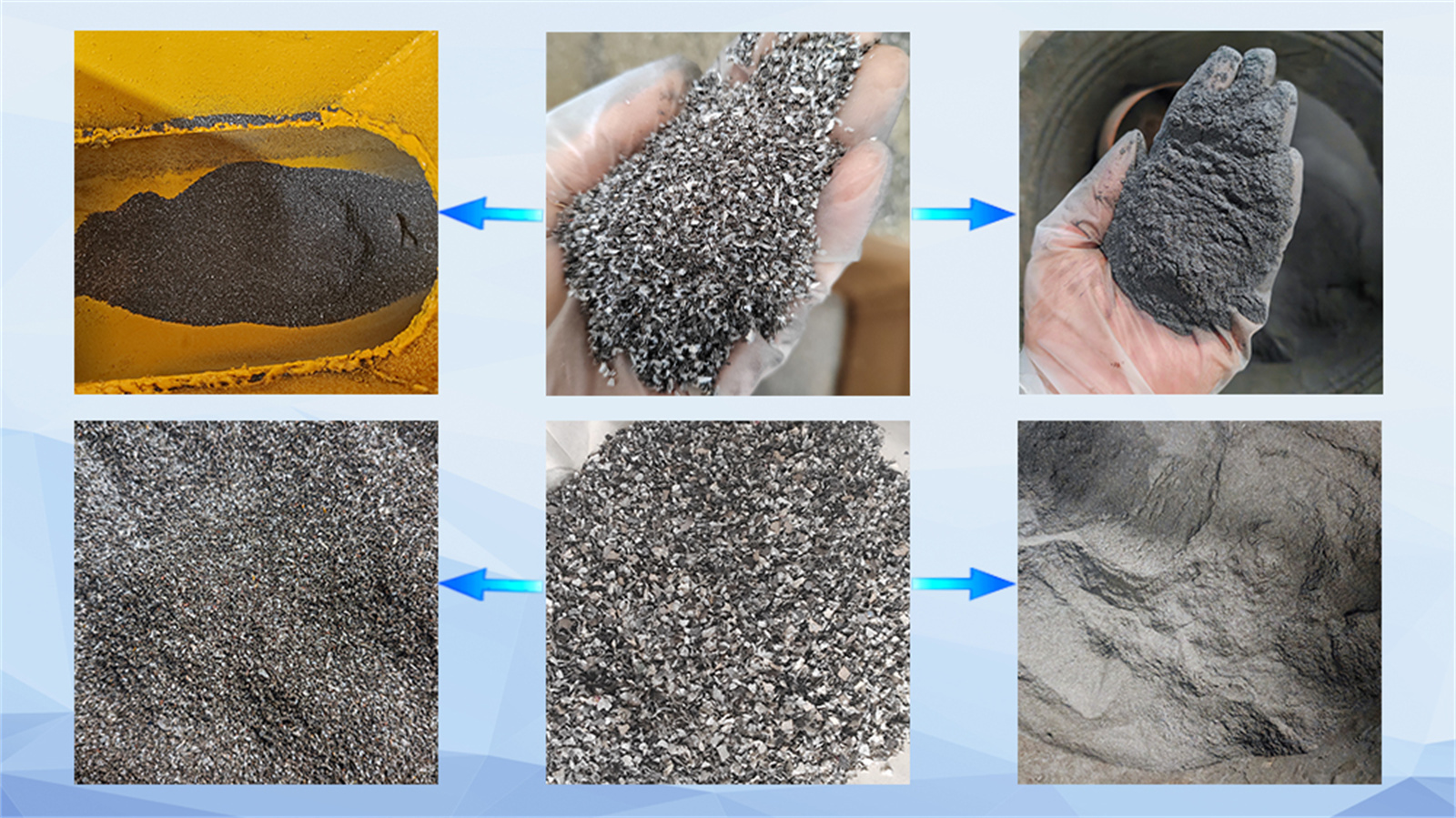

In the solar panel recycling process, the broken solar panel fragments are put into a mill and ground into uniform particles. The ground solar backsheet powder automatically enters the rotary vibrating screen to separate out silicon powder and EVA glue mixed with copper metal. At this time, the silicon powder can be collected and sold directly, and the EVA glue mixed with copper metal enters the next process in an orderly manner through the discharge port, laying a solid foundation for further resource separation, purification, and reuse.
