Recycling Production Line
Waste Circuit Board Recycling And Processing Equipment
Product Introduction
Circuit boards are mainly composed of substrates, copper foil, and electronic components, and have high recycling value. The waste circuit board recycling equipment production line produced by our factory mainly includes shredders, crushers, cyclone sorting, magnetic separators, grinding and screening machines, etc. It can efficiently dismantle circuit boards and sort out copper, aluminum, iron and other metals through shredding, crushing, sorting and other equipment. It can achieve fine processing of component materials, effectively extract valuable components, and promote resource recycling.
description2
0102030405060708

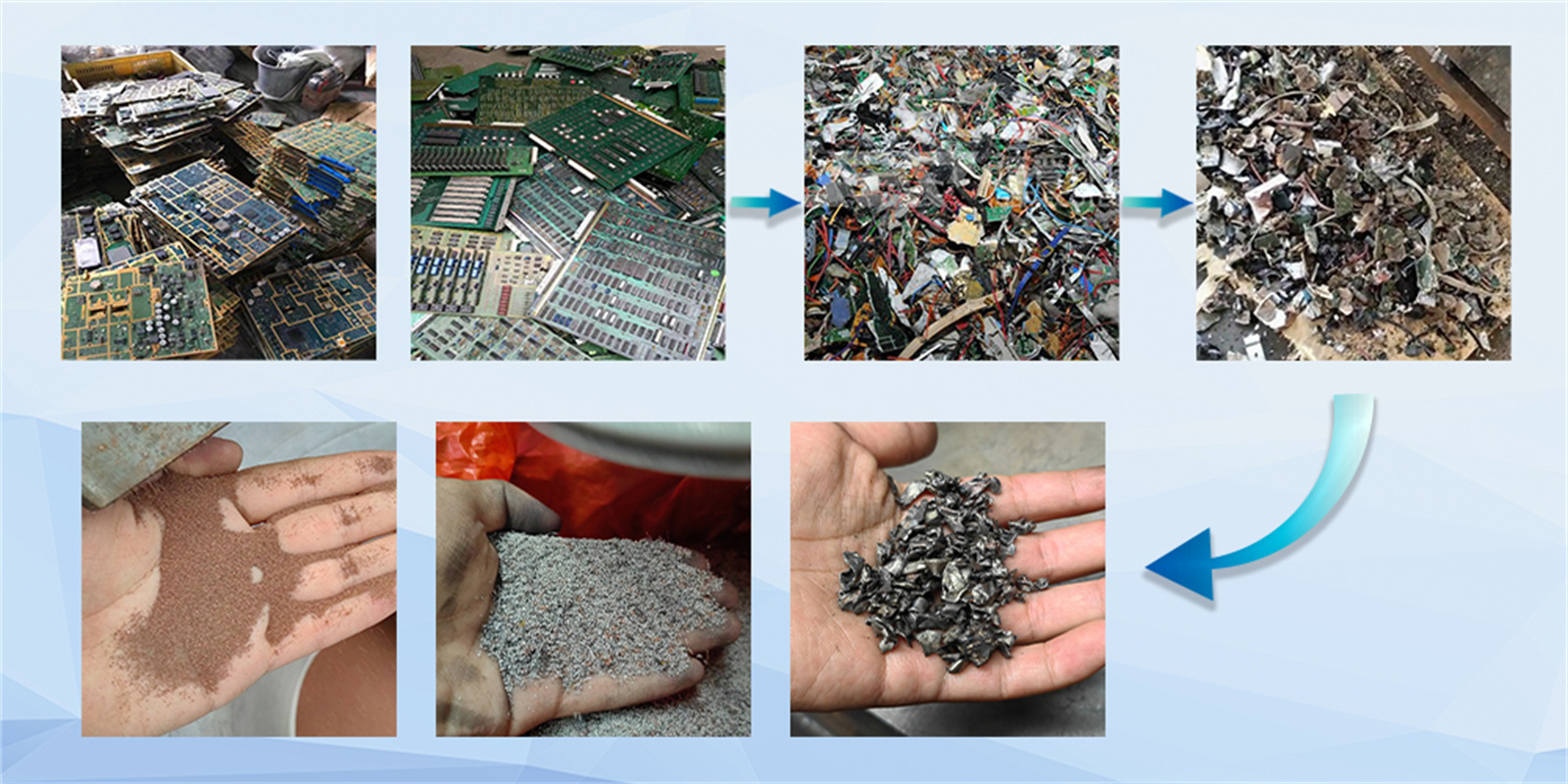

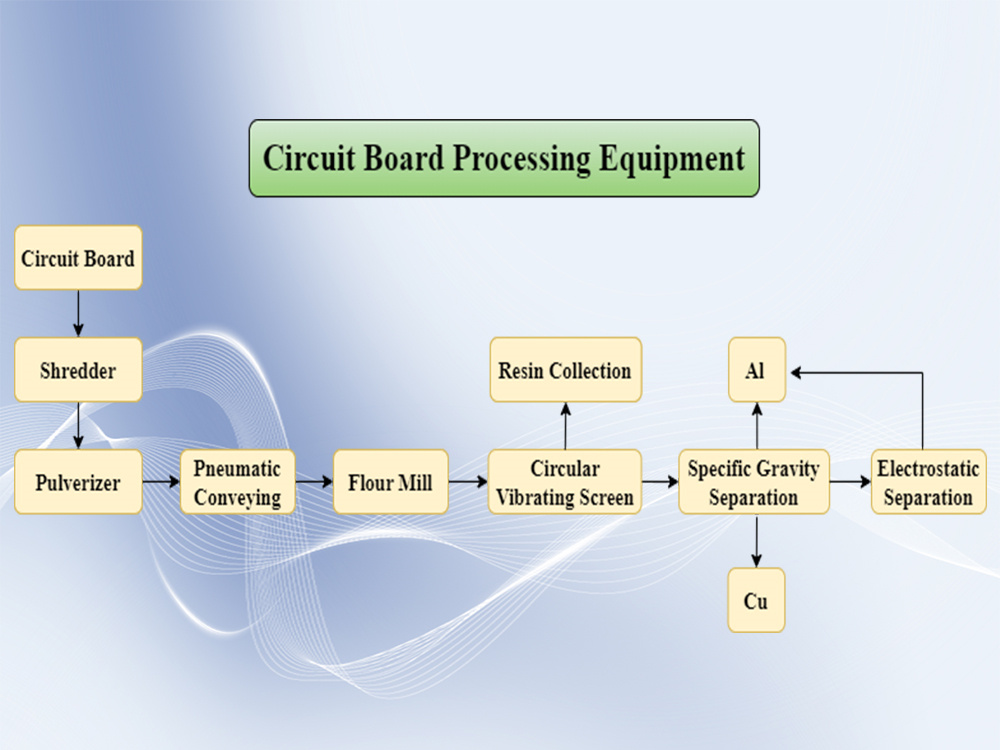

Recycling process
1. Shredding stage. The waste circuit board waste is sent to the shredder through a belt conveyor and shredded into flakes.
2. Crushing stage. The water tank radiator fragments are transported to the crusher by a belt conveyor and crushed into smaller materials.
3. Crushing stage. The material is sent to the crusher by pneumatic conveying.
4. Sorting stage. Copper and aluminum metals are sorted out through a circular vibrating screen, a specific gravity separator and an electrostatic separator.
5. Centralized dust removal. Each of our equipment will be equipped with dust removal equipment to avoid environmental pollution during the recycling and treatment of waste materials.
