Waste Positive And Negative Electrode Battery Recycling Equipment
Product Introduction

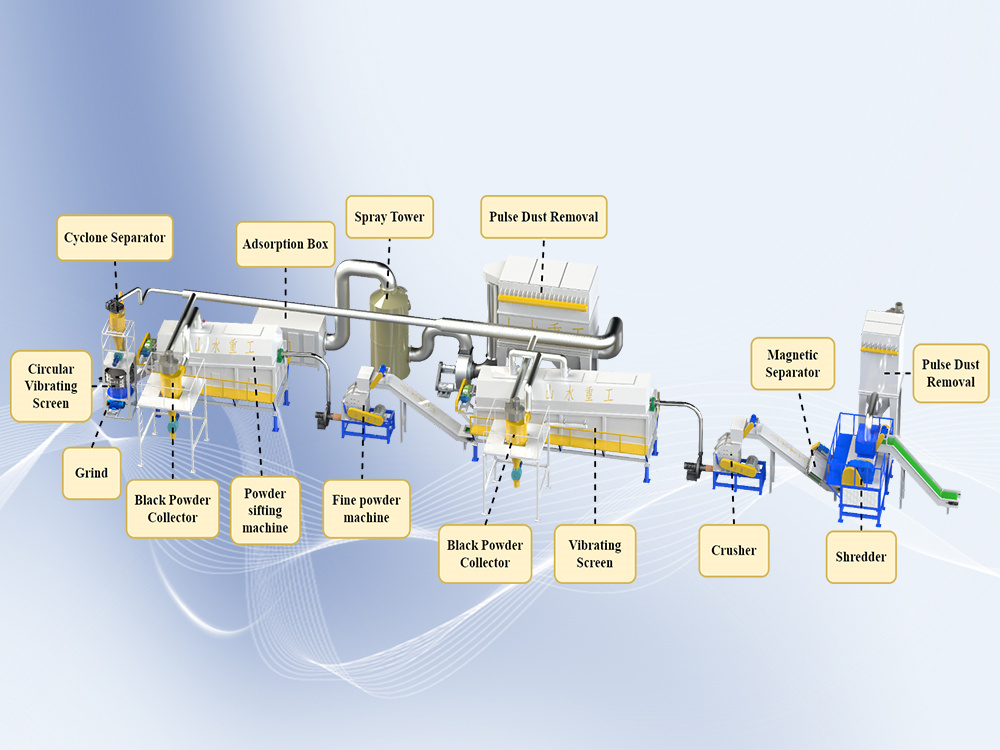

The main components of positive and negative batteries are ternary lithium, graphite, copper, aluminum, iron, etc., which have high recycling value. The waste positive and negative battery recycling equipment production lines produced by our factory mainly include shredders, crushers, drum screens, linear screens, magnetic separators, grinding and screening machines, specific gravity separators, etc. It can efficiently disassemble the positive and negative batteries. It first discharges the battery, and then separates ternary lithium powder, copper, aluminum, iron and other metals through shredding, crushing, magnetic separation, grinding, sorting and other equipment. Achieve precise processing of component materials, effectively extract valuable components, and promote resource recycling.
description2
01020304050607080910

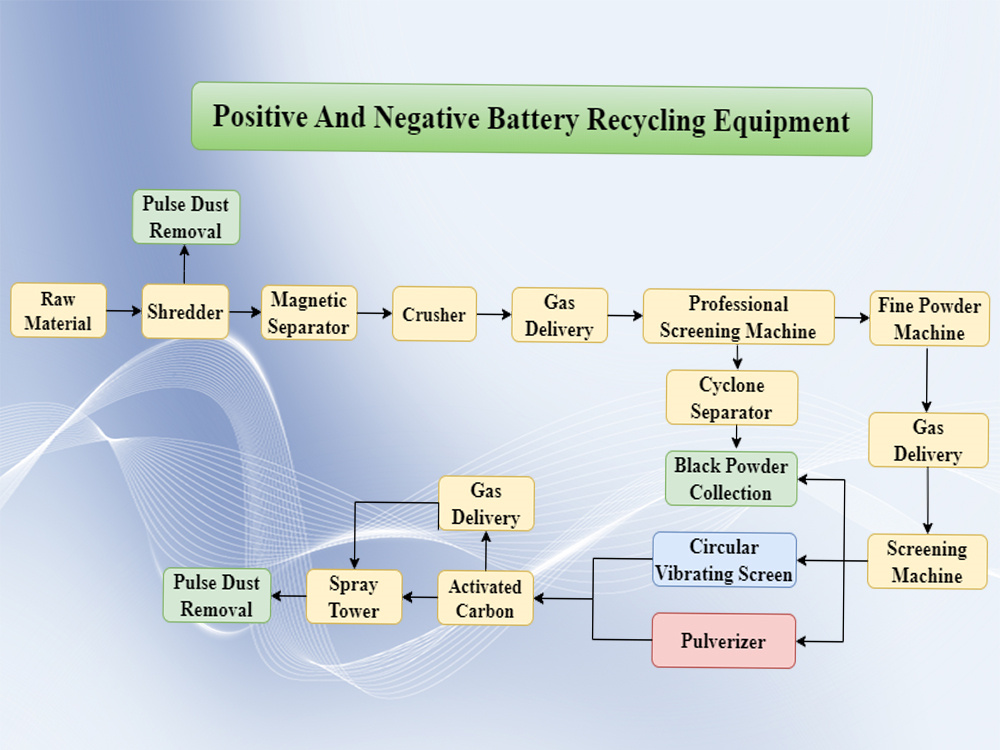

Recycling process
1. Shredding stage. The waste positive and negative battery raw materials are sent to the shredder through a belt conveyor and shredded into flakes.
2. Magnetic separation stage. The magnetic separator separates the iron metal when the positive and negative battery fragments are sent to the crusher by the belt conveyor.
3. Crushing stage. The positive and negative battery fragments are transported to the crusher by the belt conveyor and crushed into smaller materials.
4. Primary screening machine section. The crushed materials are transported to the vibrating screen by pneumatic conveying to separate some black powder for the first time.
5. Crushing stage. The remaining materials are crushed into powder.
6. Intermediate screening stage. The crushed materials are transported to the vibrating screen by pneumatic conveying to separate some black powder again.
7. Final screening stage. The remaining materials are separated into copper and aluminum metals by a circular vibrating screen and a specific gravity separator.
8. Centralized dust removal. Each set of our equipment will be equipped with dust removal equipment to avoid environmental pollution during the recycling and treatment of waste materials.
