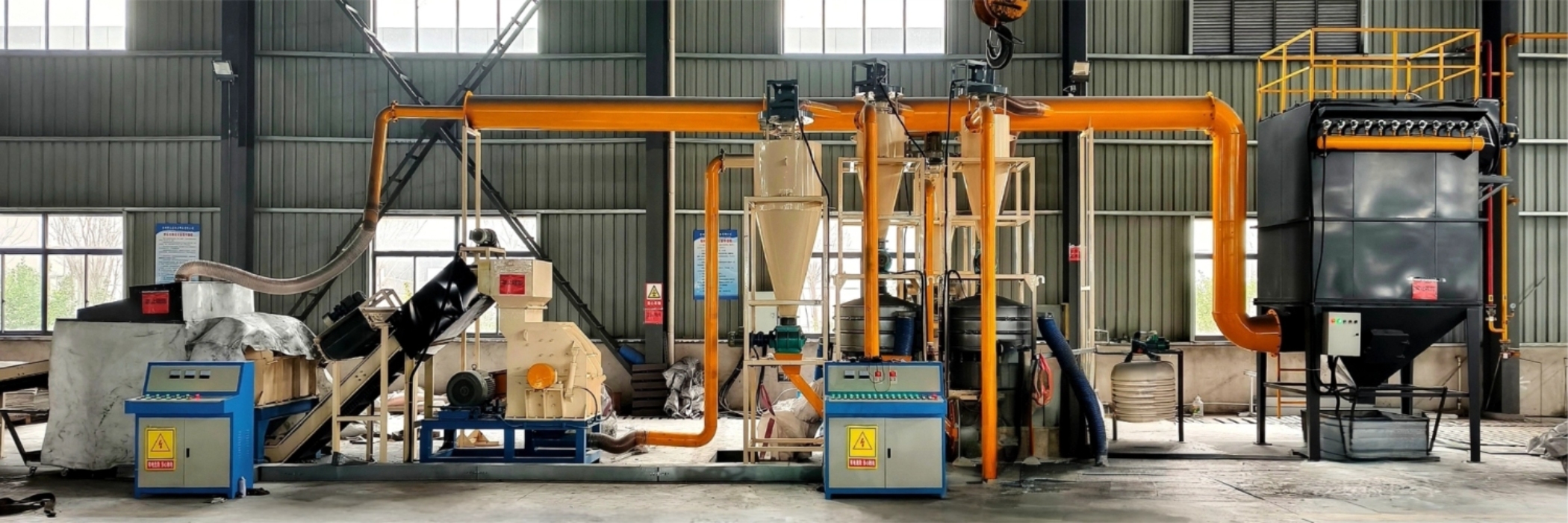

Waste Solar Panel Recycling Equipment Production Line

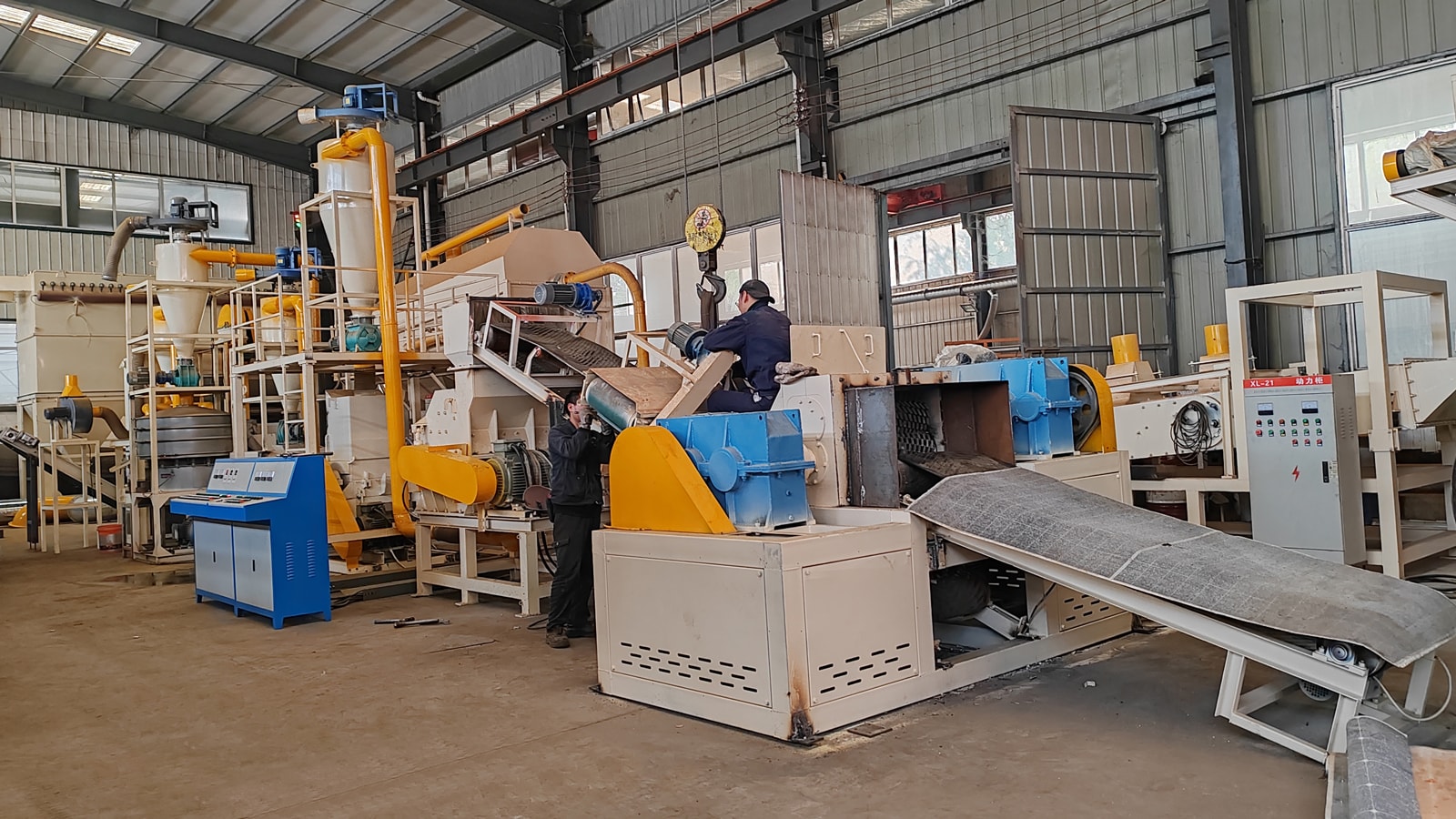

Product Introduction

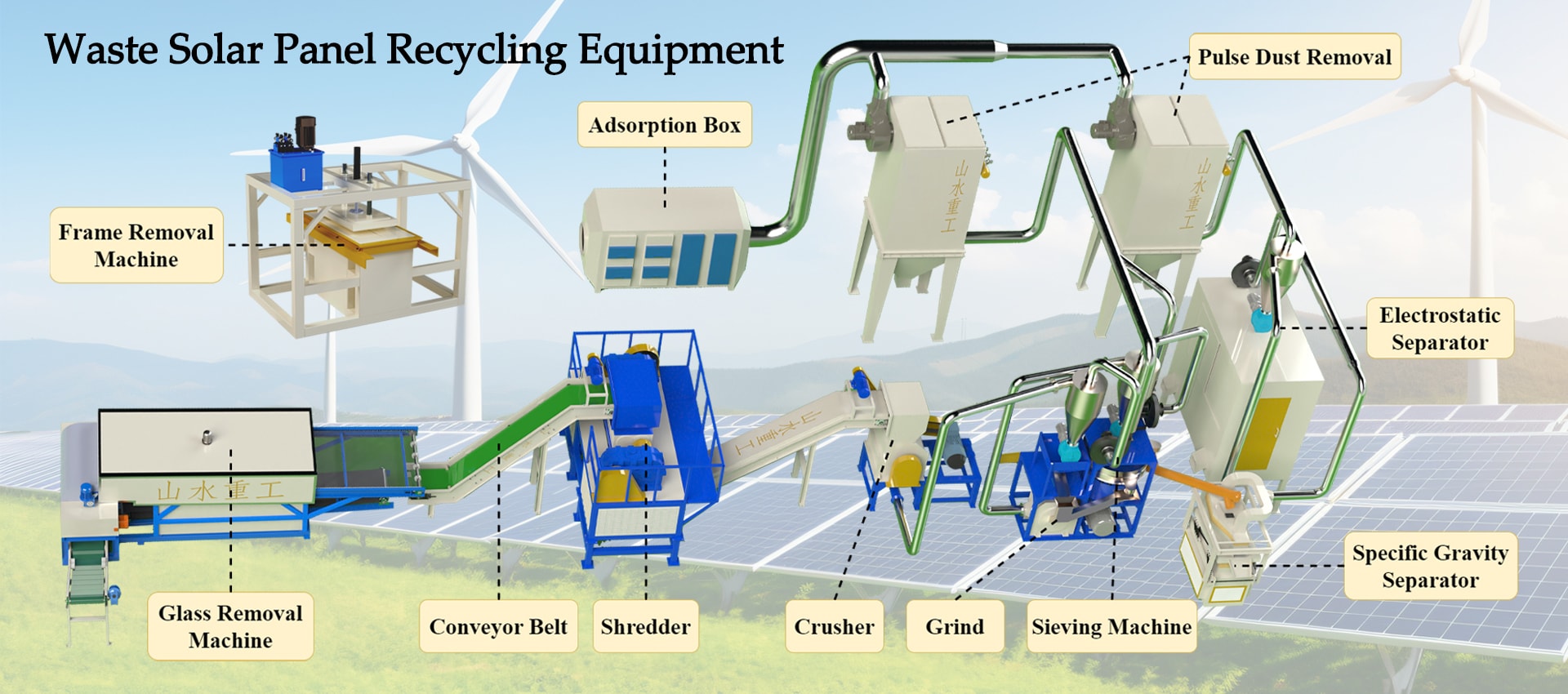

Waste solar panels have high recovery value, which not only helps reduce waste of resources, but also make significant contributions to environmental protection. As a manufacturer specializing in the production line of waste solar board recycling equipment, we are undoubtedly at the forefront of this important field. The devices we use to recycle waste solar panels mainly include aluminum frame removal machines, glass removal machines, fragments, crusher, grinding machines, round vibration sieves, and gravity splitting machines. Through these devices, we can recycle metal aluminum, copper, glass particles, silicon powder, etc. Our waste solar panel recycling equipment production line provides a reliable solution for the recycling of solar panels, which has made positive contributions to promoting sustainable development.
description2
0102030405060708

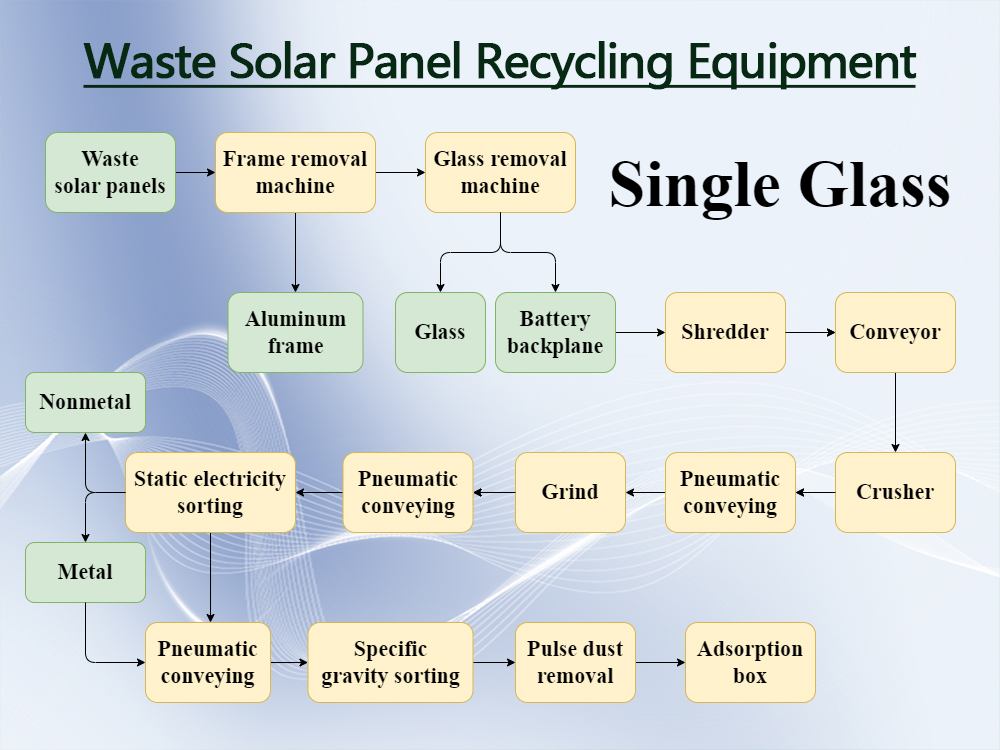

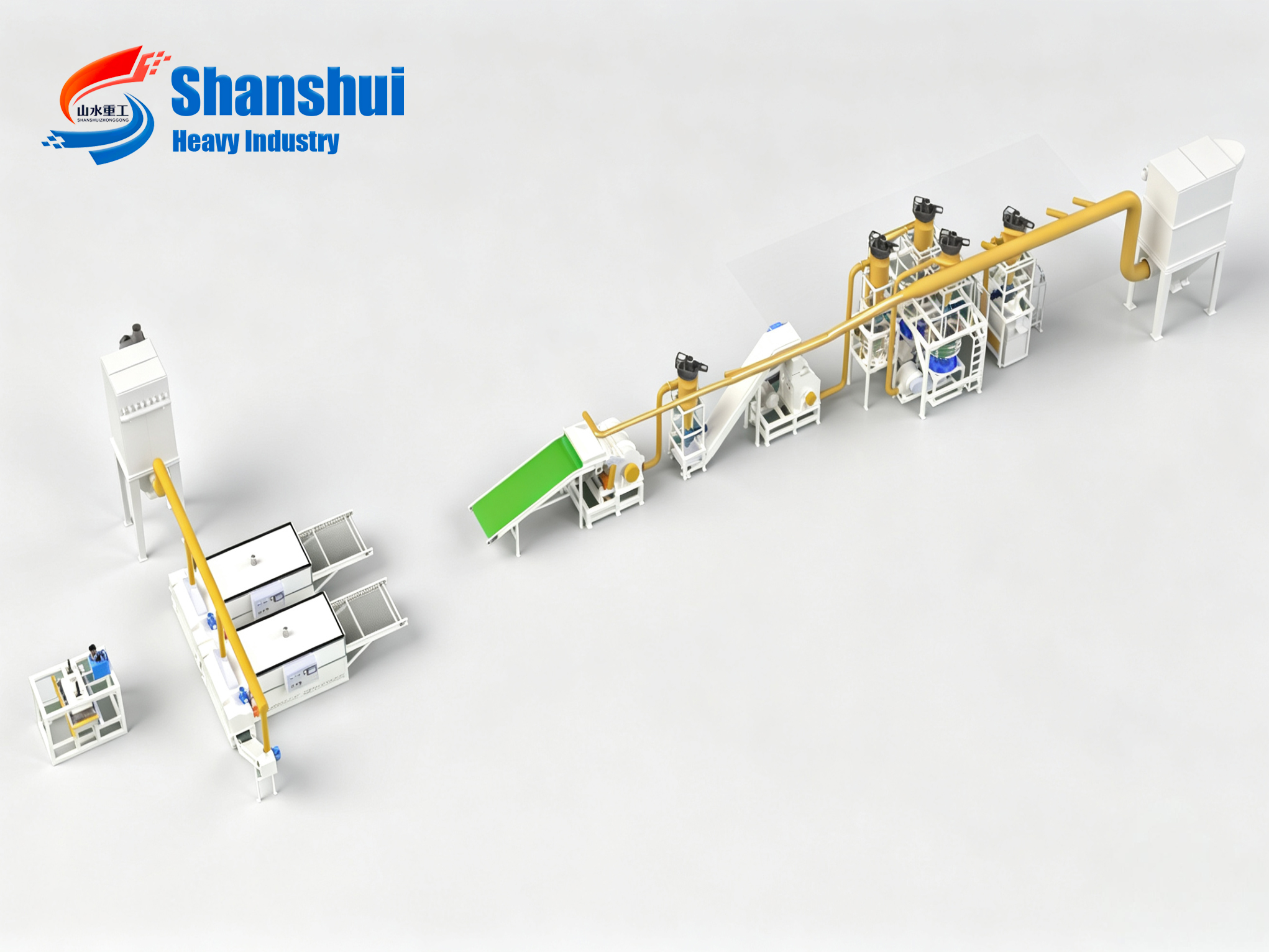

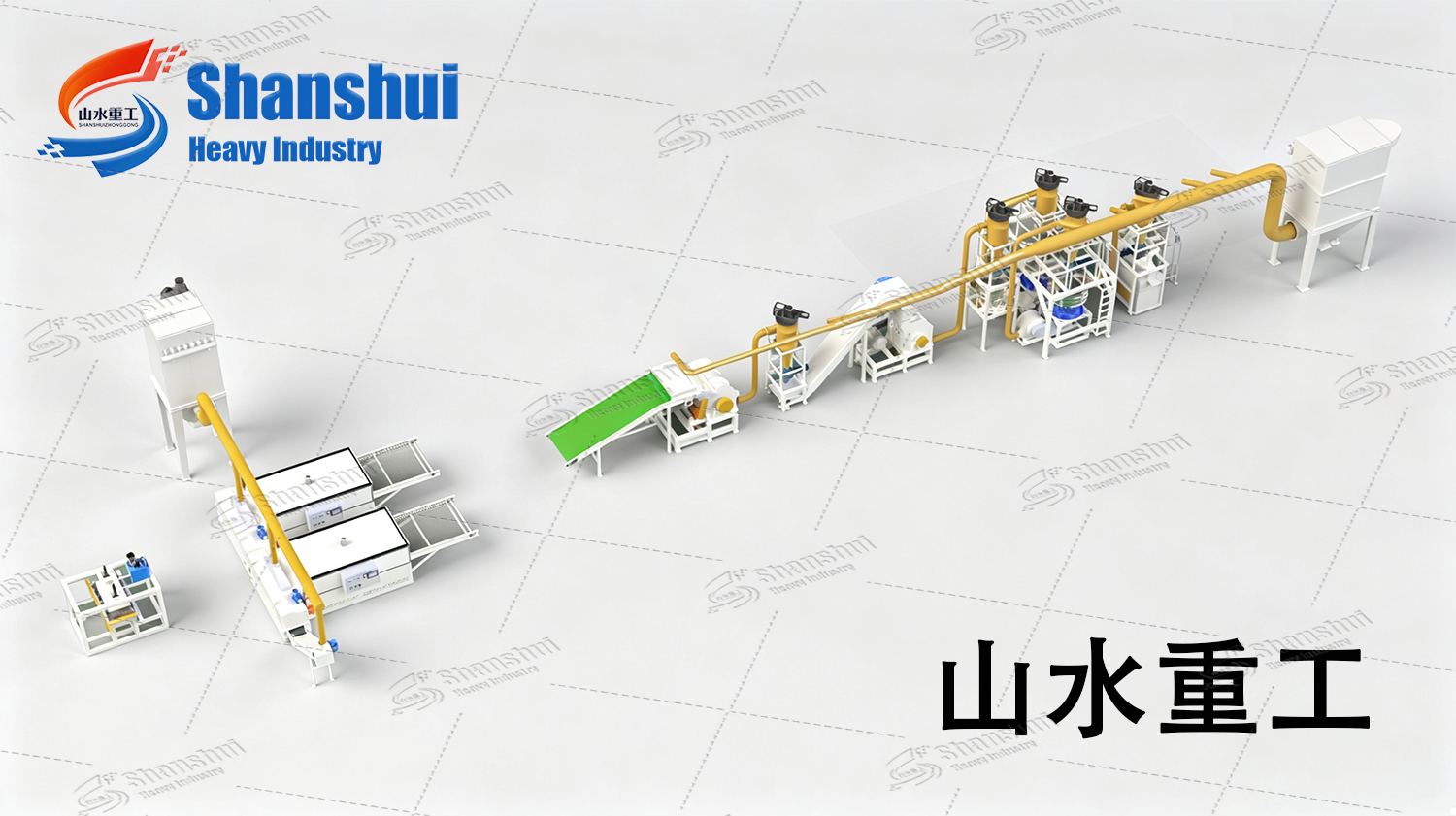

Recycling process
1. Raw Material Collection: Collect waste photovoltaic panels from sources such as photovoltaic power stations, defective products from solar panel manufacturers, and waste building photovoltaic facilities.

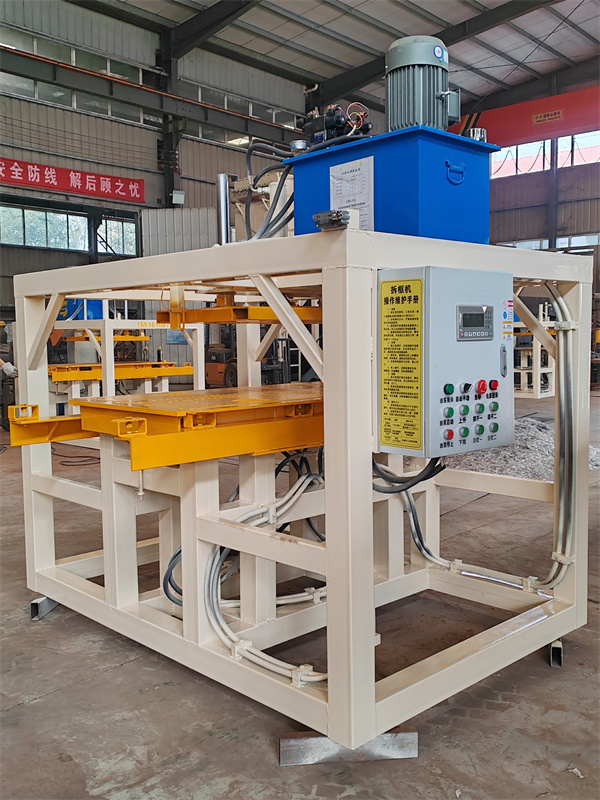

2. Frame Removal: The recycled waste photovoltaic panels are first used to remove the aluminum frame of the solar panel using a frame removal machine to obtain metallic aluminum.

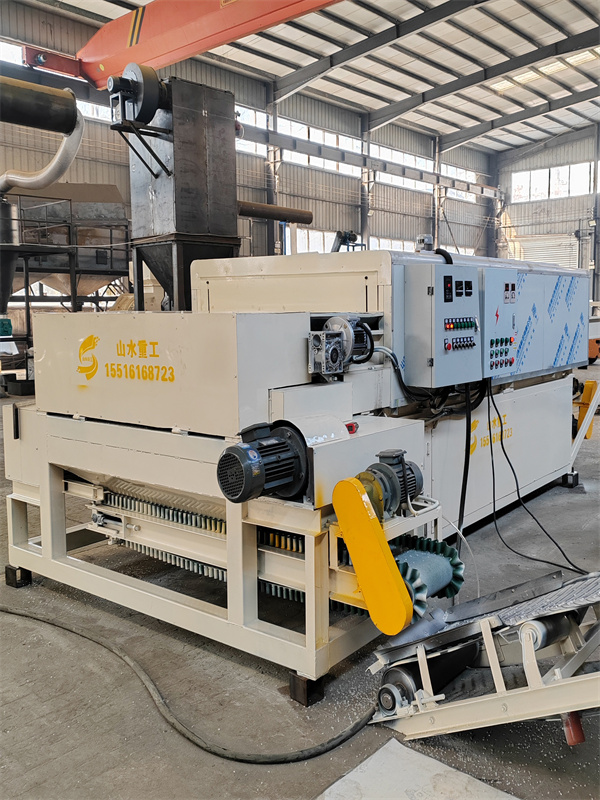

3. Glass Removal: Use a deglazing machine to remove the glass on the surface of solar panels with aluminum frames to obtain glass particles.

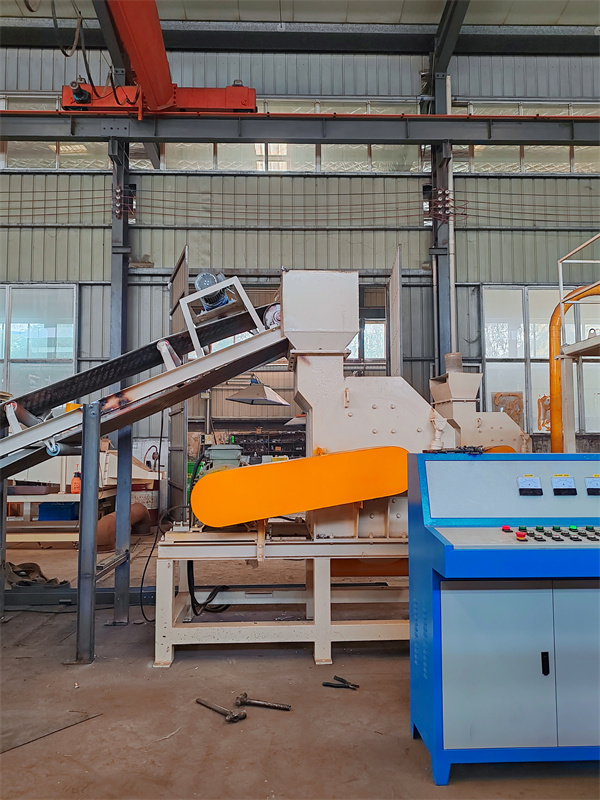

4. Shredding: Use a shredder to shred the solar back panel after removing the aluminum frame and glass.
5. Crushing: The shredded materials enter the crusher to separate the battery cells, back plates and metal.
6. Grinding: The crushed materials enter the mill and are ground into uniform particles.

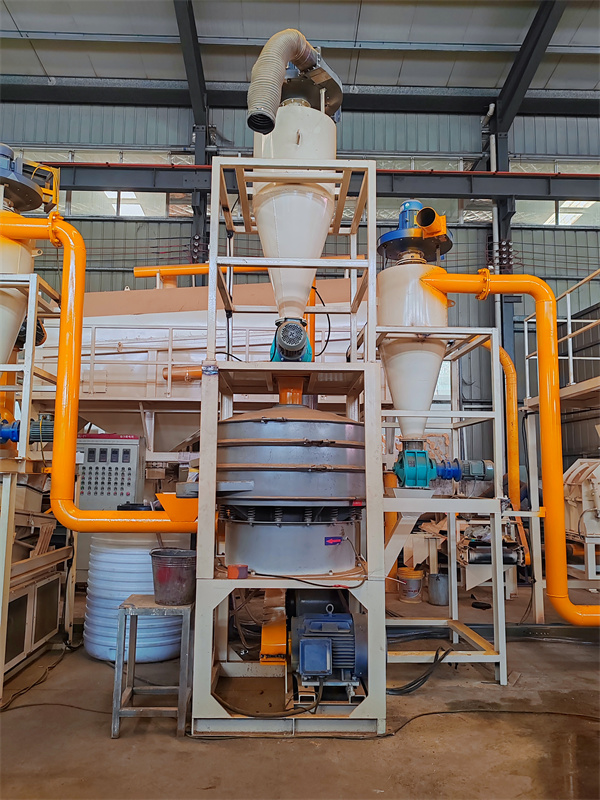

7. Screening: The ground material enters the screening machine to separate the EVA and the backing plate, and first collect the silver silicon powder.
8. Magnetic Separation: Use a magnetic separator to screen out the ferrous metals in the remaining materials.
9. Specific Gravity Sorting: The remaining materials enter the specific gravity sorting machine to sort out EVA glue and pure copper particles respectively.
10. Centralized Dust Removal: Each of our production lines will be equipped with dust removal equipment to avoid environmental pollution during the recycling process.
